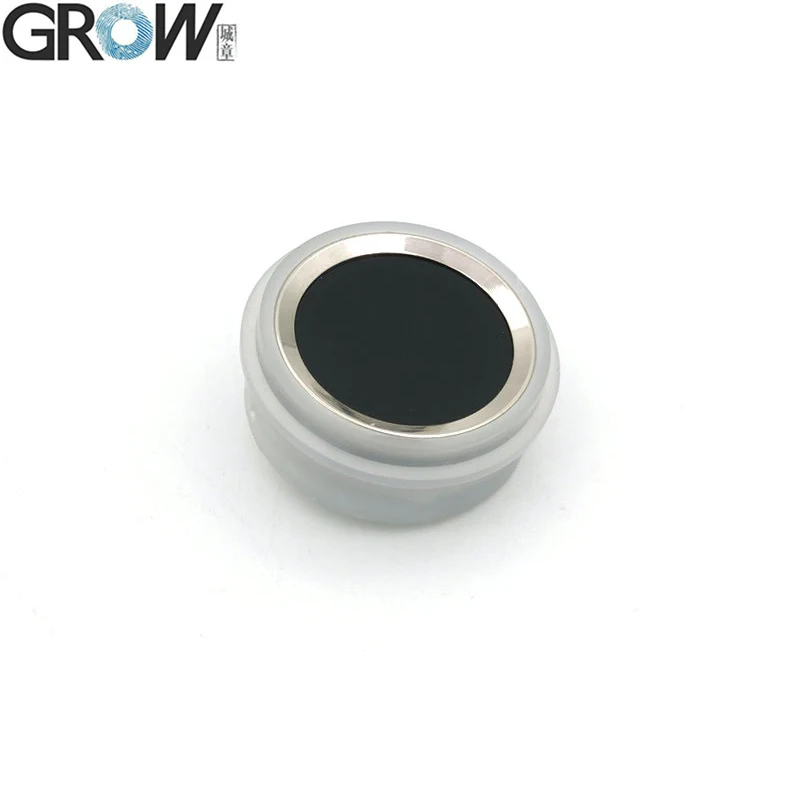

GROW R502-F Waterproof Small DC3.3V Diameter 21.5mm MX1.0-6pin Capacitive Round LED Fingerprint Module Sensor Scanner
Description
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box
The R502-F is waterproof design.(Except the connector part, after install the R502-F, you can protect it by yourself)
Waterproof Level: IP65
When the temperature of the use environment fluctuates greatly, it may affect the glue, thus affecting the waterproof effect.
R502-F can connect with K200-3.3,K202,K215-V1.3,K216,K219-A,K220,K236-A Fingerprint control board.
***The different between R502-F with R502-A:
R502-F is waterproof design. R502-A is not.
Size have a little different.
***The different between R502-F with R503:
R503 have a zinc alloy enclosure, easy for installation. You can make a M25 hole and install it directly.
R502-F don't have enclosure, but it is smaller and waterproof.
***The different between R502-F with R502:
R502 LED is on the top of module, size is very thin.
R502-F is round LED, thicker than R502, but waterproof.
Model | R502-F |
Type | Capacitive Fingerprint Module |
Interface | UART(TTL) |
Resolution | 508 DPI |
Voltage | DC 3.3V |
Fingerprint Capacity | 200 |
Sensing array | 192*192 pixel |
Working current | 20mA |
Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |
Fingerprint module external size | Diameter 21.5 (mm) |
Fingerprint module inner size | Diameter 19.4 (mm) |
Fingerprint module height | 9 (mm)(Except the connector) |
Effective collection area | Diameter 15.5 (mm) |
Connector | MX1.0-6Pin |
LED Control | YES |
LED Color | Purple and Blue and Red |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤1% |
FAR | ≤0.001% |
Work environment | -20C ---60C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
·Provide User Manual
You can download the R502-F user manual from this website link:
R502-F Operation display video on Youtube: https://youtu.be/sVrZ7S1slDw
If need SDK files,pls contact us.
LED Effect picture
Size
Cable Definition
