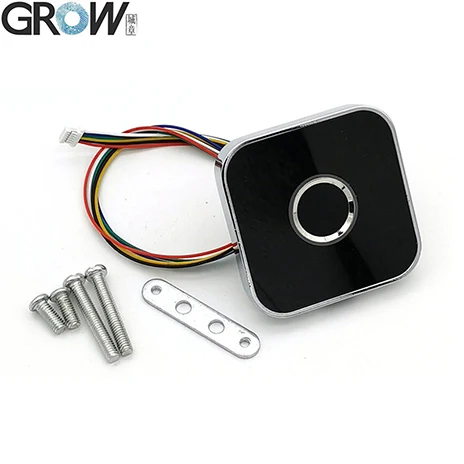

GROW R502-AW Zinc Alloy Round Ring LED Control DC3.3V Capacitive Fingerprint Module Sensor Scanner
Description
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box
The R502-AW has circular ring indicator light that can be controlled by command, R502-A is built-into R502-AW.
Model | R502-AW |
Type | Capacitive Fingerprint Module |
Interface | UART(TTL) |
Resolution | 508 DPI |
Voltage | DC 3.3V |
Fingerprint Capacity | 200 |
Sensing array | 192*192 pixel |
Working current | 20mA |
Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |
Fingerprint module external size | 50*50*8.4 (mm) |
Effective collection area | Diameter 15.5 (mm) |
Enclosure material | Zinc alloy |
| Connect control board | K200-3.3/K202/K215-V1.2/K216 |
Connector | MX1.0-6Pin |
LED Control | YES |
LED Color | Purple and Blue and Red |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤1% |
FAR | ≤0.001% |
Work environment | -20C ---60C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
·Provide User Manual
You can download the R502-AW user manual from this website link:
R502-AW Operation display video on Youtube: https://youtu.be/Q82Zg4iFHOA
If need SDK files,pls contact us.
LED Effect picture
Size

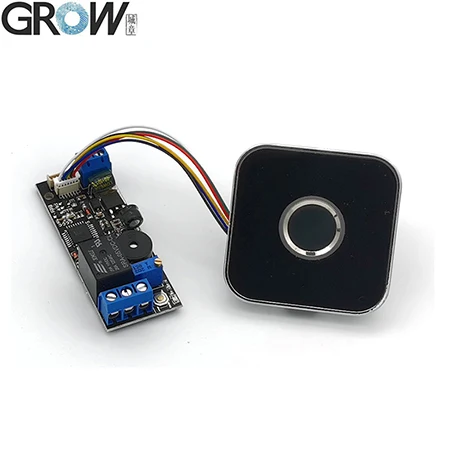

If need fingerprint control board, R502-AW can be used together with K200-3.3 fingerprint control board
http://www.zjgrow.com/GROW-K200-33R502-AW-Circular-Ring-Indicator-Light-Capacitive-Fingerprint-Access-Control-Board-p2593878.html

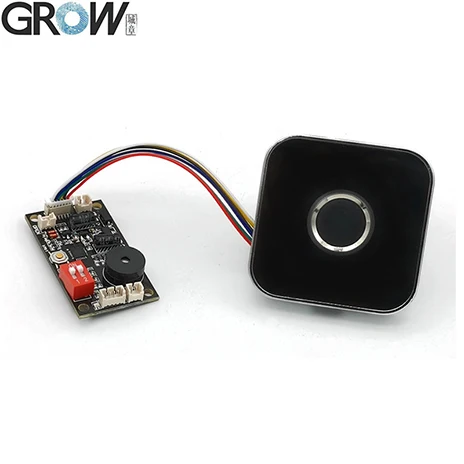

If need fingerprint control board, R502-AW can be used together with K202 fingerprint control board
http://www.zjgrow.com/GROW-K202R502-AW-DC12V-Low-Power-Consumption-Fingerprint-Access-Control-Board-p2593898.htmlIf need fingerprint control board, R502-AW can be used together with K215-V1.2 fingerprint control board
http://www.zjgrow.com/GROW-K215-V12R502-AW-Fingerprint-Access-Control-Board-For-Car-Motorcycle-Access-Control-p2593993.htmlIf need fingerprint control board, R502-AW can be used together with K216 fingerprint control board
http://www.zjgrow.com/GROW-K216R502-AW-Capacitive-Fingerprint-Access-Control-Board-Scanner-Module-p2595230.html
- Brand Name:
- grow
- Model Number:
- R502-AW
- Interface:
- RS232 (TTL)
- Effective collection area:
- diameter 15 (mm)
- Fingerprint capacity:
- 200
- Voltage:
- DC 3.3V
- Resolution:
- 508 DPI
