GROW K219-A+R502-A Programmable Time Relay Fingerprint Infrared Remote Control Board

stars, based on 0reviews

~~$27.00~~$25.00 piece

Quantity Price

10+ $24.00

Description
Item specifics

·Power supply: DC12V

·Output: Relay(Max. current: 10A)
·P2: MX 1.25-6P Fingerprint Module
·P3: MX 1.00-6P Fingerprint Module
·Fingerprint capacity: 120 pieces(20 fingerprints per relay position)
·K1-K6 SET Button corresponds to No.1-6 Relay

Control board management:Fingerprint,Remote control(IR)

(Before operation, it is necessary to wake up standby. Touch the fingerprint module, and the indicator light is on, then it can be set.)

1. Have 6 SET Buttons

2. Have 6 Relays

3. One SET Button Controls One Relay

4. Each Relay Can Store 20 Pieces Fingerprint, Total 120 Pieces

5. Same Fingerprint Can be Opened with Different Relay at the Same Time

6. Use SET Button to Register Fingerprints to Different Relay

7. Use SET Button to Delete Single Relay Postion's Fingerprint

8. Use SET Button to Delete All Relay Position's Fingerprint

9. Have Administrative Password

10. Use Remote Control to Register Fingerprints to Different Relay

11. Use Remote Control to Delete Single Relay Postion's Fingerprint

12. Use Remote Control to Delete All Relay Postion's Fingerprint

13. Use Remote Control to Adjust the Time of Different Relays (0.5s-99s)

K219-A Operation Instruction

1. SET Button(K1-K6):

1.1 Register Fingerprint:

Press SET button shortly,blue indicator light flash fast means system in register state, put the finger in the collection area,fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds to exit.

1.2 Delete Fingerprint:

1.2.1 Delete single relay position fingerprints: Long press the corresponding SET button,blue indicator light flash fast,hear long ”Di” beep, loosen the finger, the relay indicator light on and hear music, means this location of the fingerprints are deleted;

1.2.2 Delete all relay position fingerprints(Back to factory default):Long press any SET button to hear long “Di” beep twice, all indicator light on, means initialization operation successful,back to factory default.

2. Remote Control:

(Before operation, it is necessary to wake up the module standby. Touch the fingerprint module, and the indicator light is on, then it can be set.)

Default administrative password: 123456 Password length: 6 numbers

2.1. Password Using: Press *Password. Red indicator lighted means in programming stated, music means operation successful. Press # to exit.

Administrative password only can be used for administrative settings, not for unlocking.

2.2. Change Administrative Password: Press *Password*1*New Password*New Password#

2.3. Register User Fingerprint: Press *Password*2*Relay Position（01-06）#

The light in this location will turn on,put the finger in the collection area,fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state. If the fingerprints is full, will have “Di Di Di” warning tone. (Note: when one finger registered in several relay positions at the same time,the finger can open different relays, and the interval time is 0.5 seconds)

2.4. Delete User Fingerprint: Press *Password*6*Relay Position（01-06）#

The light in this location will turn on and can hear music, indicating that the fingerprint of the relay position has been deleted successfully

2.5. Setting Relay Time: Press *Password*5*Relay Position（01-06）*Time（00-99）#

（00 means 0.5s, 01 means 1s, 02 means 2s,...,99 means 99s）

2.6. Clean the system and back to factory default: Press *Password*3*Password#

All relay lights are on, indicating that clearing is successful and back to factory default.

K219-A can be used together with R501,R502,R502-A,R502-AW,R503 fingerprint module

Model	R502-A
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing array	192*192 pixel
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size	Diameter 22 (mm)
Fingerprint module inner size	Diameter 19.3 (mm)
Fingerprint module height	5 (mm)(Except the connector)
Effective collection area	Diameter 15.5 (mm)
Connector	MX1.0-6Pin
LED Control	YES
LED Color	Purple and Blue and Red
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C ---60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R502-A user manual from this website link:

https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0

You can dowload the K219-A user manual from this website link:

https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0

K219-A Operation Video on Youtube: https://youtu.be/nsLJP8_2Z70

If need SDK files,pls contact us.

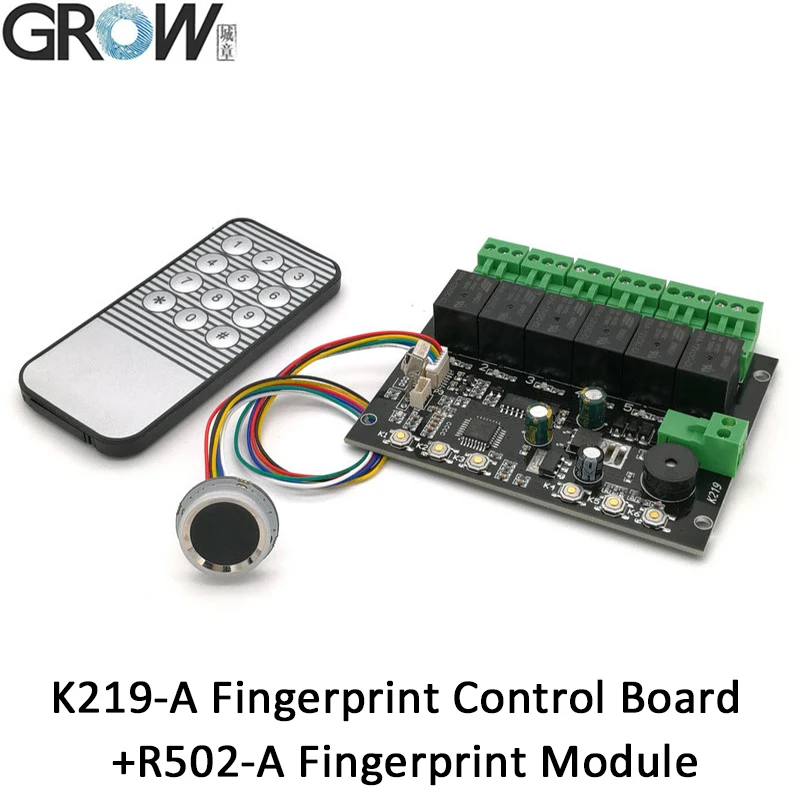

K219-A+R502-A-

K219-A Circuit board diagram

K219-A-A K219-A-C

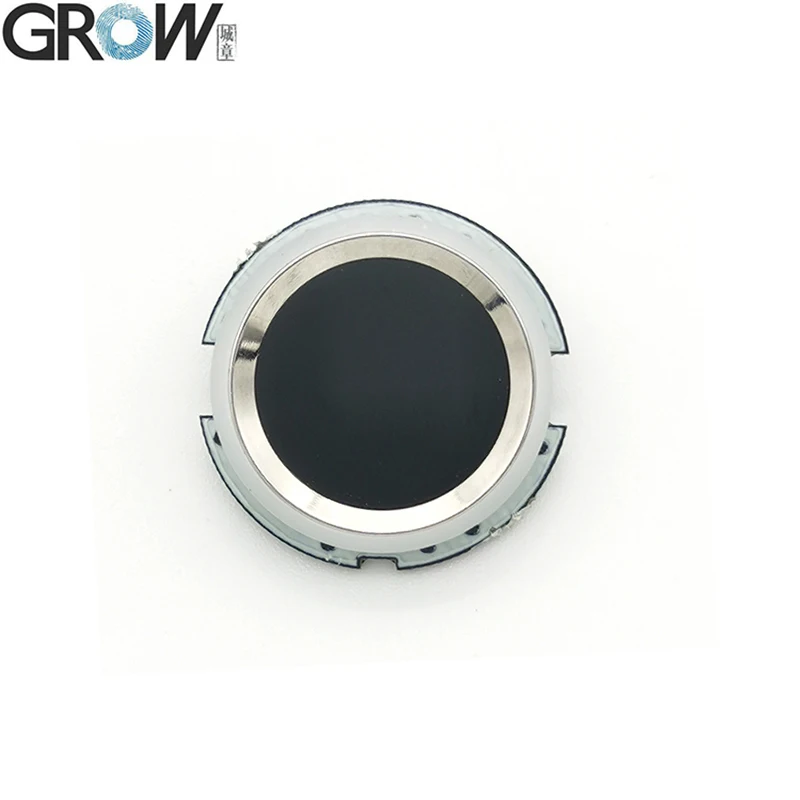

R502-A Fingerprint Module

R502-A-A R502-A-B

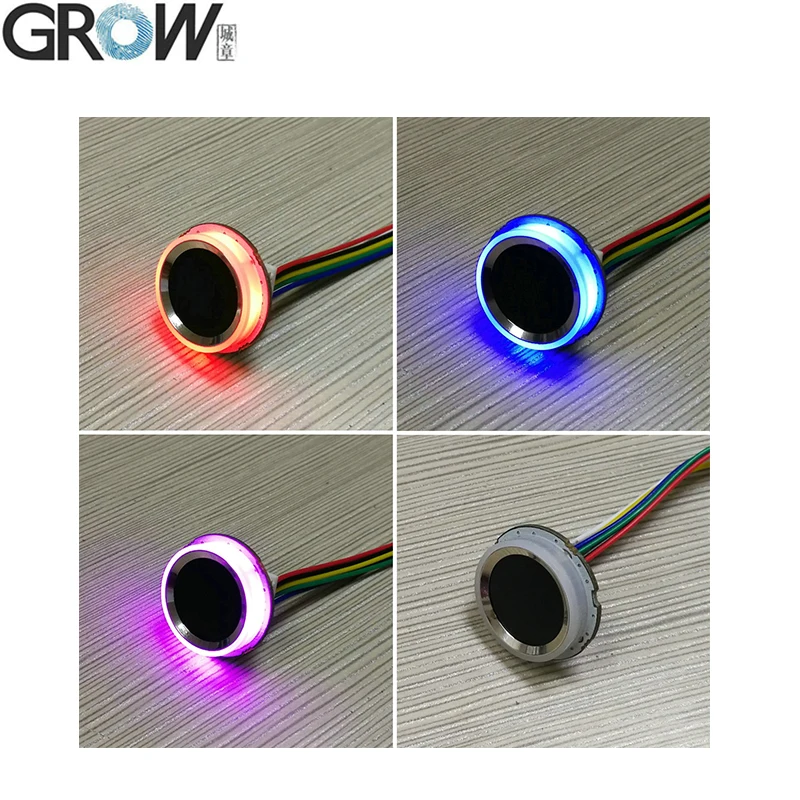

LED Effect picture

R502-A-E

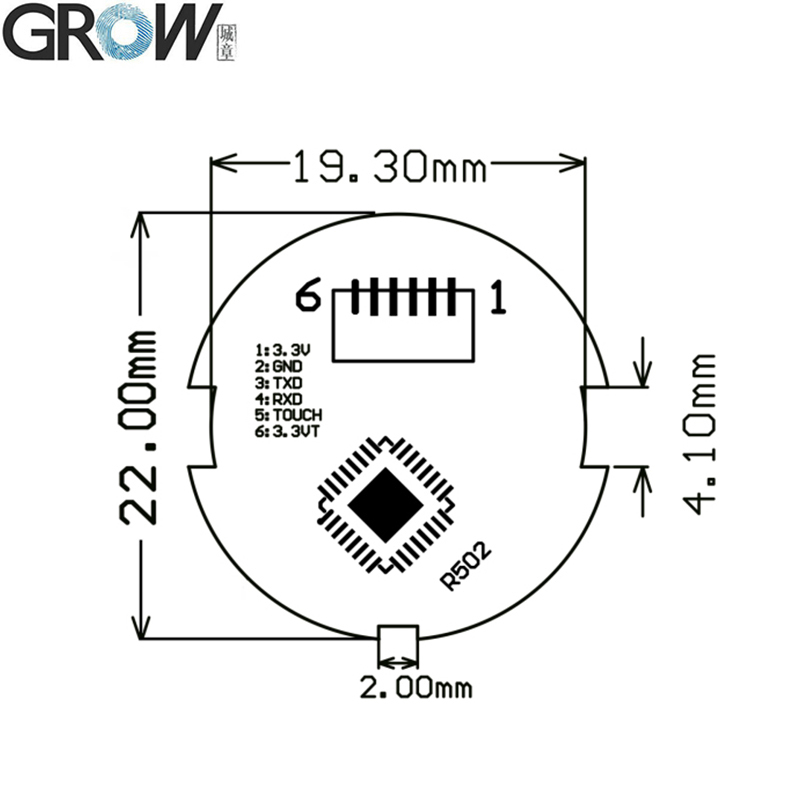

Size

R502-A-G

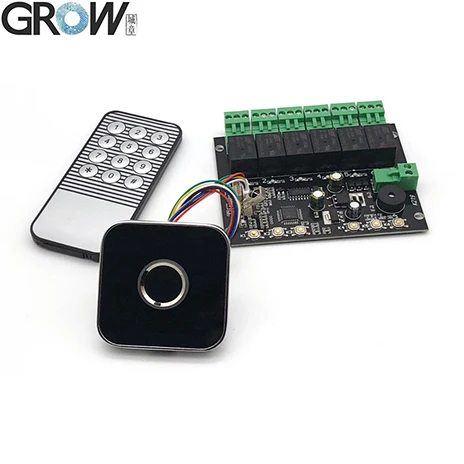

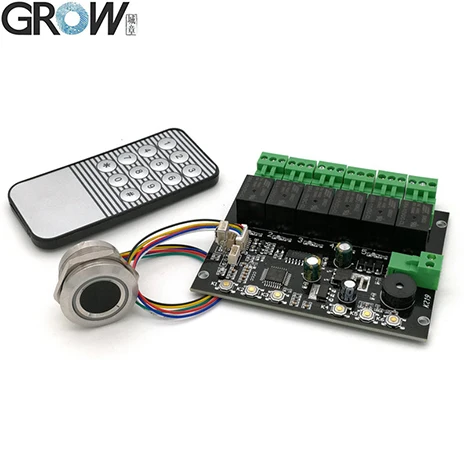

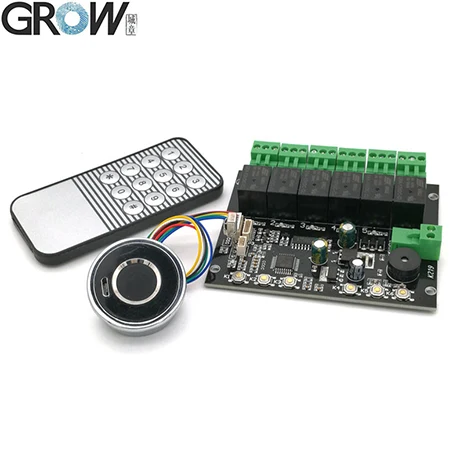

K219-A Fingerprint Control Board+R502-A Fingerprint module+Remote Control

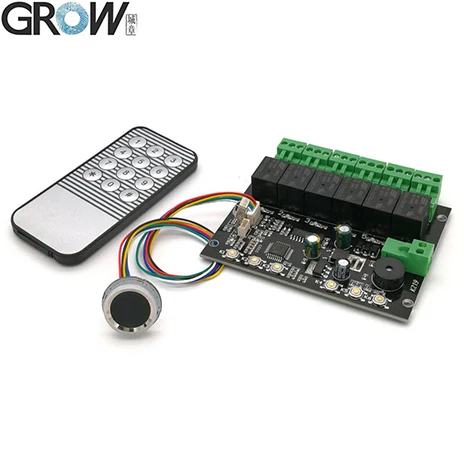

K219-A+R502-A
