GROW KS200+R502-A 4*AA Battery or DC3.7V--6.5V Motor Output Circular Ring Indicator Light Fingerprint Access Control Board

stars, based on 0reviews
$21.90now$19.60 piece
Quantity Price
10+ $18.82
999items available
Contact Us
OR
Description



4*AA battery or DC3.7-6.5V, Motor Output, Low Power Consumption, Admin/User Function
·Power supply：DC3.7V--6.5V
·Stand-by mode current：＜7uA
·Output：DC5--6V,1.5A(Peak:2.5A)
·Administrator Fingerprint：20 pieces
·User Fingerprint：180 pieces
·Low voltage alarm：4.8V (dry battery)
                                    3.5V (Lithium battery)


Motor Working Mode:
①Forward 0.5 seconds → Rest 5 seconds → Reverse 0.5 seconds.
②Forward 1 seconds → Rest 5 seconds → Reverse 1 seconds.
③Forward 1 seconds
④Forward 2 seconds
⑤Self-locking Mode
⑥Hold Mode




1 Register Administrator Fingerprint:
Long press the SET button,release finger when shows blue indicator light on the control board,now the fingerprint module indicator flash fast,put the same admin finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously and it can register 20 pieces administrator fingerprint; if no need adding fingerprint more, waiting a few seconds to exit. If the administrator is fully registered,it will automatically exit the administrator registration state after hear “DiDiDi” and will start register user fingerprint if press SET button again.
2 Register User Fingerprint:
Press the administrator fingerprint until the blue indicator light flash fast and hear the music,means can add user fingerprint. Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful.Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.
3 Delete User Fingerprint:
Press the administrator fingerprint until red indicator light flash fast and hear music,means user fingerprints are deleted.
4 Factory Setting:
Long press the SET button,until shows red indicator light on the control board and hear the music, then release the finger,means initialization operation successful.

Note:
1.Any fingerprint can be used when factory default, and this function disabled after fingerprint registered.
2.When the voltage is less than DC4.7V, the red light lightens, means the low voltage warning.
3.In hold mode, when register user fingerprint, press the administrator's fingerprint first. After passing, lift the finger and press the administrator's fingerprint again. When the light flashes and hear the music sounds, the user's fingerprint can be registered.

KS200 suitable for R502-A,R502-F,R502-AW,R503 fingerprint module.




Model

R502-A

Type

Capacitive Fingerprint Module

Interface

UART(TTL)

Resolution

508 DPI

Voltage

DC 3.3V

Fingerprint Capacity

200

Sensing array

192*192 pixel

Working current

20mA

Standby current

Typical touch standby voltage: 3.3V, Average current: 2uA

Fingerprint module external size

Diameter 22 (mm)

Fingerprint module inner size

Diameter 19.3 (mm)

Fingerprint module height

5 (mm)(Except the connector)

Effective collection area

Diameter 15.5 (mm)

Connector

MX1.0-6Pin

LED Control

YES

LED Color

Purple and Blue and Red

Scanning Speed

< 0.2 second

Verification Speed

< 0.3 second

Matching Method

1:1; 1:N

FRR

≤1%

FAR

≤0.001%

Work environment

-20C ---60C

Work Humidity

10-85%

Anti-static capacity

15KV

Abrasive resistance intensity

1 million times

Communications baud rate (UART):

(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)





·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R502-A user manual from this website link:

You can dowload the KS200 user manual from this website link:


If need SDK files,pls contact us.




KS200 Circuit board diagram




Extension Cable for Set Button and LED. Circuit board diagram:


R502-A Fingerprint Module





LED Effect picture

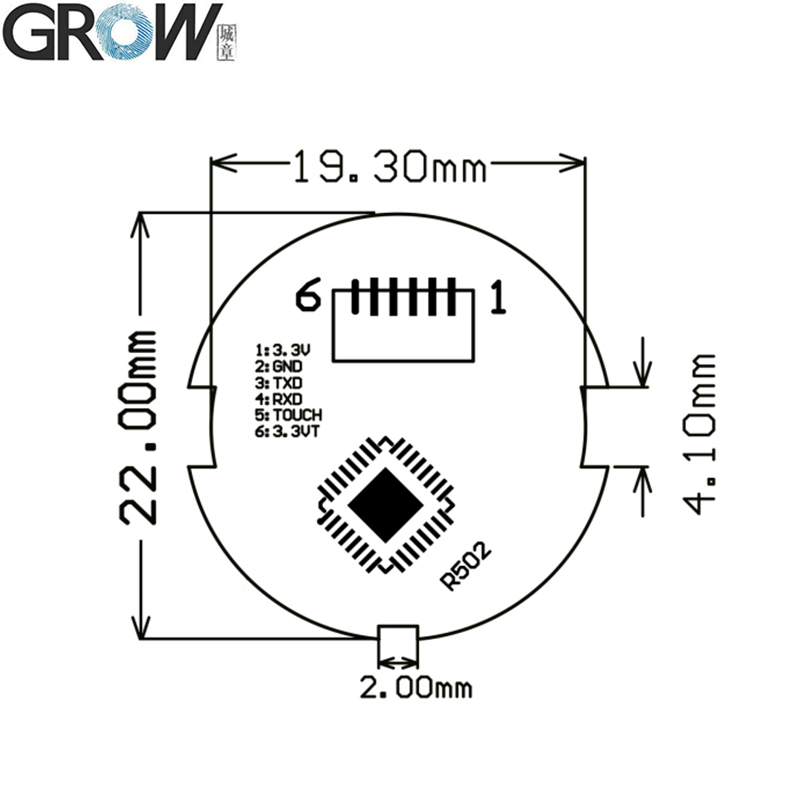

Size


Brand Name:
grow
Model Number:
KS200+R502-A
Fingerprint capacity:
200
Power Supply:
4*AA battery or DC3.7V--6.5V
Output:
DC5--6V,1.5A(Peak:2.5A)
Standby mode current:
less than 7uA
