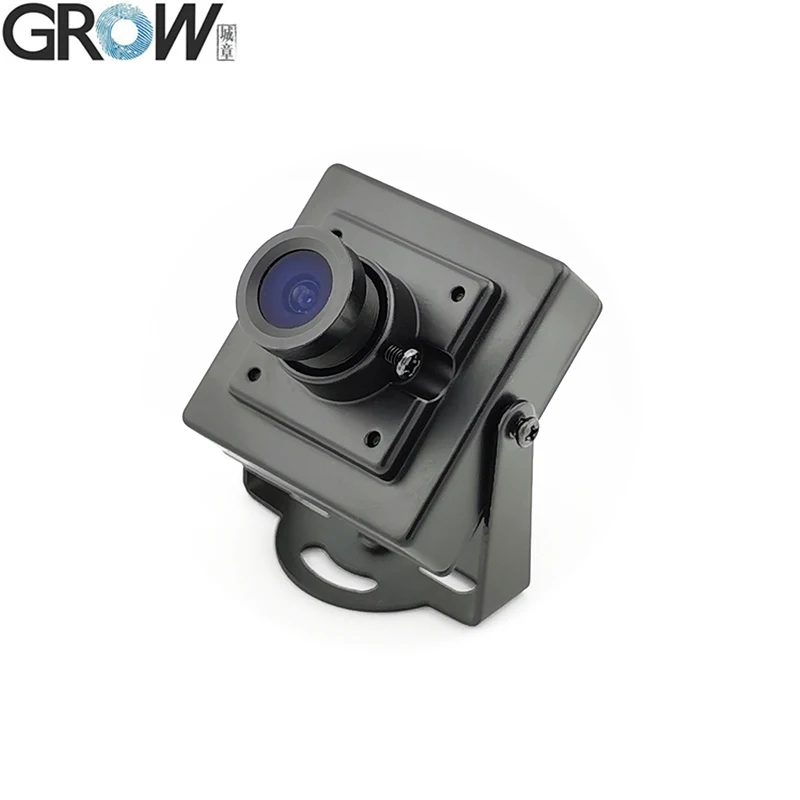

GROW GM71 1D 2D USB/UART Barcode Scanner Module Reader With Interchangeable M12 Lens Support QR Code Bar Code USB UART Interface

stars, based on 0reviews

~~$16.80~~$14.50 piece

Quantity Price

10+ $13.92

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

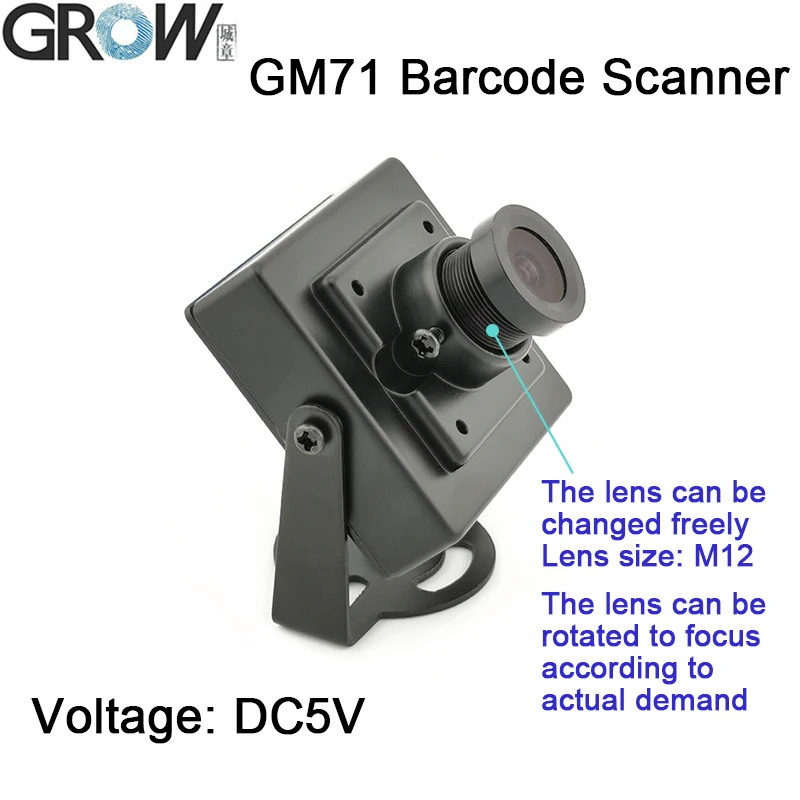

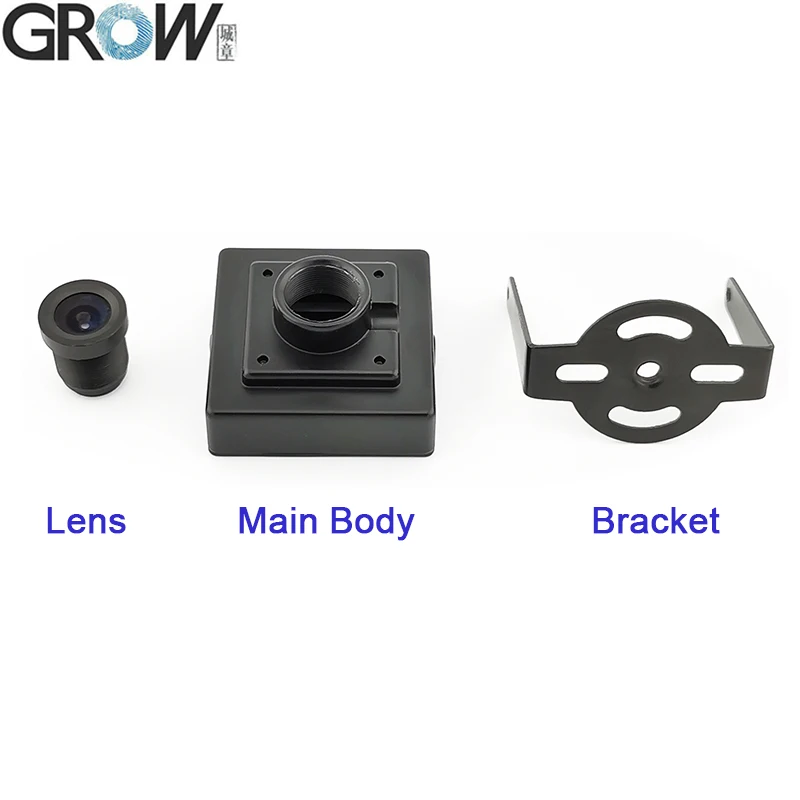

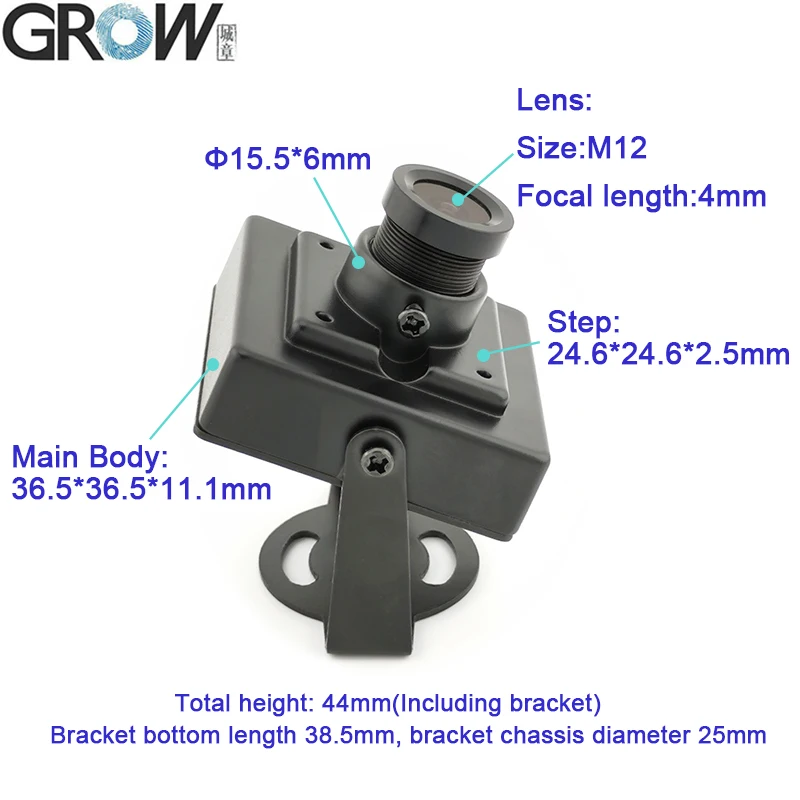

9. Free to change lens, lens size M12.

Model	GM71
Scan Mode	640*480 CMOS
Type	Barcode Scanner
Decoding Ability	1D: EAN13,ISSN,ISBN,EAN8,UPCA,UPCE,Code128,Code39,Code93, CodeBar,Interleaved 2 of 5, ITF-14, ITF-6, Industrial 2 of 5, Matrix 2 of 5,Code11,MSI-Plessey,GS1-Databar (RSS) 2D: Micro QR,QR,Data Matrix,PDF417,Micro PDF417,Aztec Code

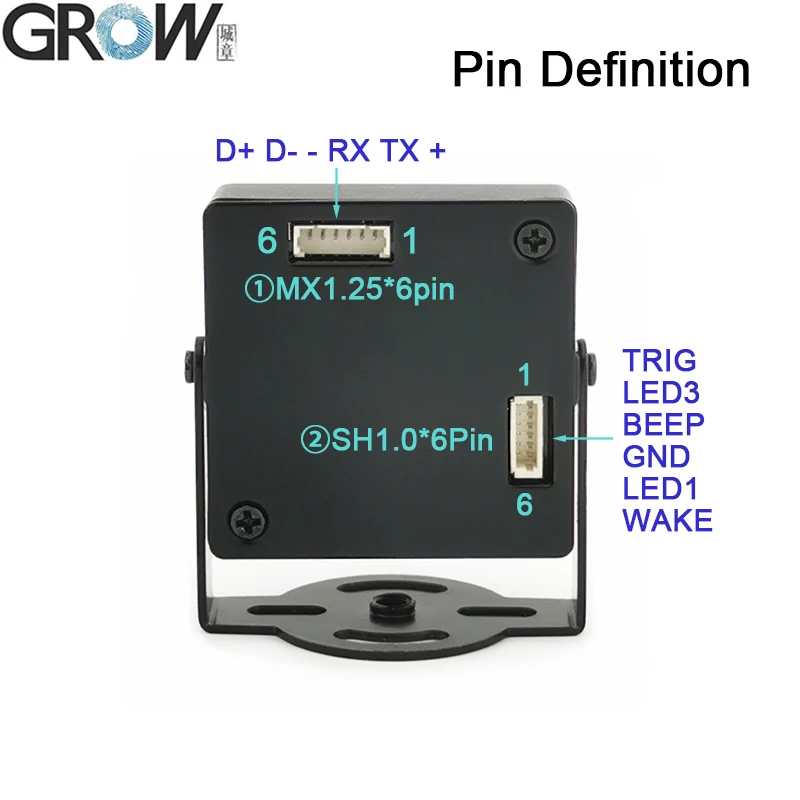

Interface	USB2.0 \ UART
Contrast	≥15%
Operating Voltage	5V
Operating Current	120mA
Standby Current	55mA
Weight	47g
Accuracy of reading	1D code ≥3mil, 2D code ≥5mil
Scan Angle	Roll: 360° Pitch: 65° Yaw: 65°
View Angle	67° (Horizontal) 53° (Vertical)
Reading Distance	25 - 250mm
Operating Temperature	-20 degrees to 60 degrees
Storage Temperature	-40 degrees to 70 degrees
Temperature Humidity	5% to 95% Relative humidity, Non-condensing

·Provide User Manual

You can download the GM71 user manual from this website link:

GM71 Operation Video on Youtube: https://youtu.be/ky271VOq2wM
