  • GROW R501 New Design Circular Shell Capacitive Fingerprint Access Control Module Sensor Scanner With 200 Finger capacity
  • GROW R501 New Design Circular Shell Capacitive Fingerprint Access Control Module Sensor Scanner With 200 Finger capacity
  • GROW R501 New Design Circular Shell Capacitive Fingerprint Access Control Module Sensor Scanner With 200 Finger capacity
  • GROW R501 New Design Circular Shell Capacitive Fingerprint Access Control Module Sensor Scanner With 200 Finger capacity
  • GROW R501 New Design Circular Shell Capacitive Fingerprint Access Control Module Sensor Scanner With 200 Finger capacity
  • GROW R501 New Design Circular Shell Capacitive Fingerprint Access Control Module Sensor Scanner With 200 Finger capacity
  • GROW R501 New Design Circular Shell Capacitive Fingerprint Access Control Module Sensor Scanner With 200 Finger capacity
  • GROW R501 New Design Circular Shell Capacitive Fingerprint Access Control Module Sensor Scanner With 200 Finger capacity

GROW R501 New Design Circular Shell Capacitive Fingerprint Access Control Module Sensor Scanner With 200 Finger capacity

stars, based on ( 0 ) reviews
$18.90now$13.90 piece
Quantity Price
10+ $13.34
999 items available
OR

Description

        1. Integrated image collecting and algorithm chip together, ALL-in-One
        2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
        3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box


Specifications

·Interface:USB 2.0 and RS232 (TTL)
·Resolution:508 DPI
·Voltage:DC 4.2-6.0V
·Fingerprint capacity:200

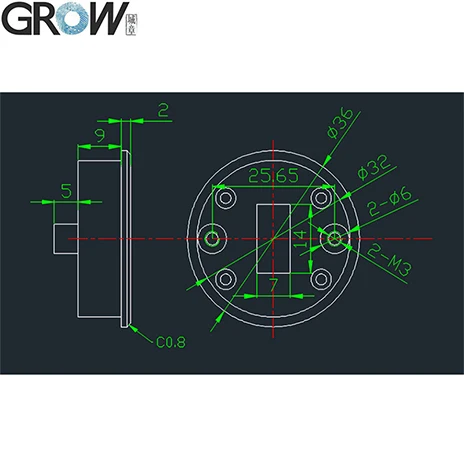

·Fingerprint reader module size:diameter 15.5 (mm)
·ScanningSpeed:< 0.2 second
·Verification Speed:< 0.3 second
·Matching Method:1:1; 1:N
·FRR (False Rejection Ratio):≤0.01%
·FAR (False Acceptance Ratio):≤0.00001%
·Antistatic capacity:15KV
·Abrasive resistance intensity:1 million times
·Peak power consumption:60 mA
·Work environment:-20°C ---55°C
·Work Humidity:0-90%
·Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)




Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

You can download the R501 user manual from this website link:



Images

-1

-1

-1

-1

-1

-1



-1

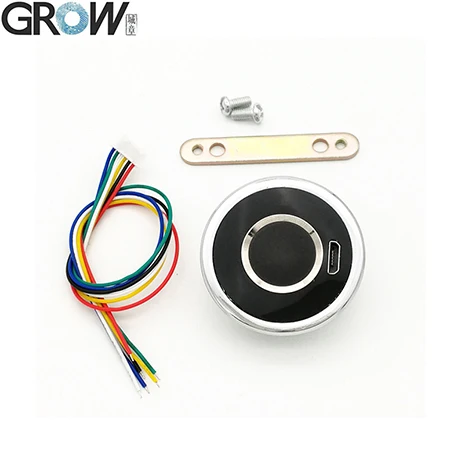

Package Listing

-1

Brand Name:
grow
Model Number:
R501
Interface:
USB and RS232 (TTL)
Effective collection area:
diameter 15.5 (mm)
Fingerprint capacity:
200
Voltage:
DC 4.2-6.0V
Resolution:
508 DPI
