  • GROW R303 USB Fingerprint Recognition Device Access Control Sensor Module Scanner With Free SDK
  • GROW R303 USB Fingerprint Recognition Device Access Control Sensor Module Scanner With Free SDK
  • GROW R303 USB Fingerprint Recognition Device Access Control Sensor Module Scanner With Free SDK
  • GROW R303 USB Fingerprint Recognition Device Access Control Sensor Module Scanner With Free SDK
  • GROW R303 USB Fingerprint Recognition Device Access Control Sensor Module Scanner With Free SDK
  • GROW R303 USB Fingerprint Recognition Device Access Control Sensor Module Scanner With Free SDK

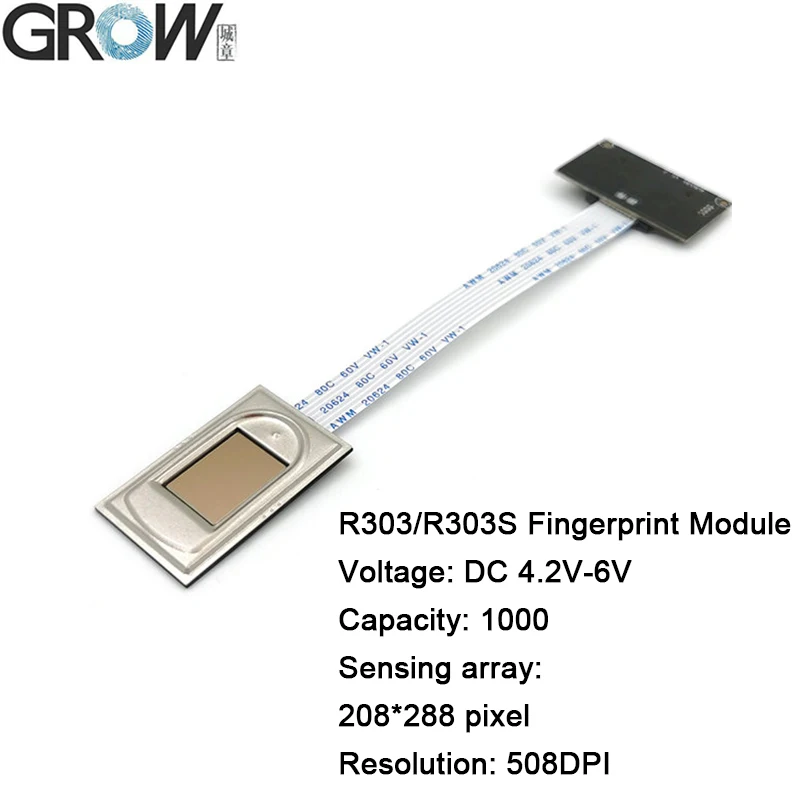

GROW R303 USB Fingerprint Recognition Device Access Control Sensor Module Scanner With Free SDK

stars, based on ( 0 ) reviews
$30.00now$27.00 piece
Quantity Price
10+ $25.92
999 items available
OR

Description

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android



Specifications

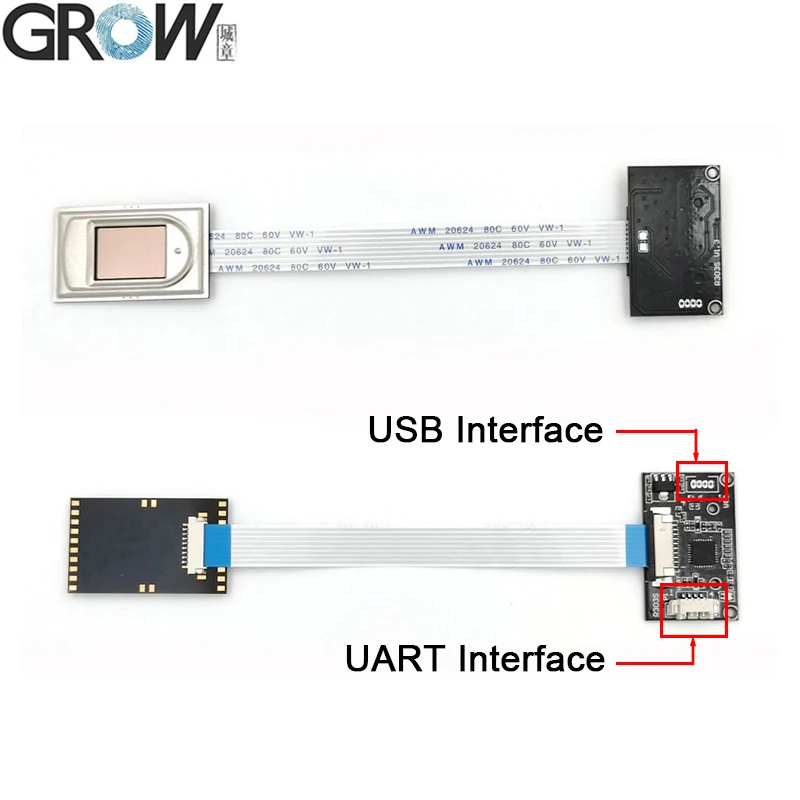

·Interface:USB 2.0 and UART(3.3V-TTL logic)
·Resolution:508 DPI
·Work Current: <55mA
·Voltage: DC 4.2-6.0V
·Fingerprint capacity:1000
·Security Level: 1-5, default is 3
·Sensor Array: 208*288 pixel

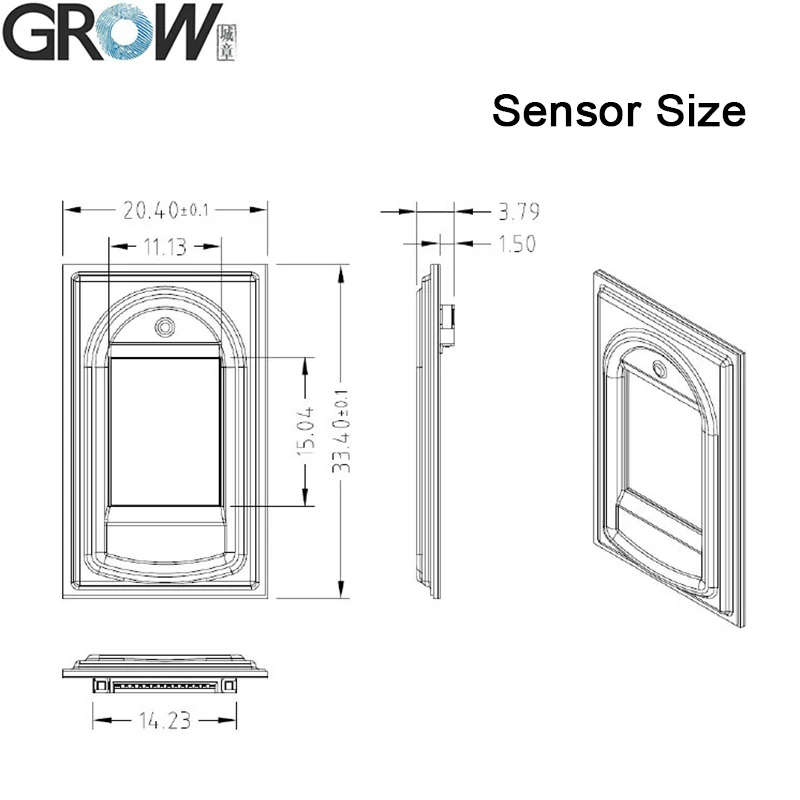

·Fingerprint reader module size: 20.4 * 33.4 (mm)
·Effective collection area: 11 * 15 (mm)
·ScanningSpeed: < 0.2 second
·Verification Speed: < 0.3 second
·Matching Method: 1:1; 1:N
·FRR (False Rejection Ratio): ≤0.01%
·FAR (False Acceptance Ratio): ≤0.00001%
·Work environment: -20°C ---55°C
·Work Humidity: 20-80%
·Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)



Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

You can download the R303 user manual from this website link:



Images

_

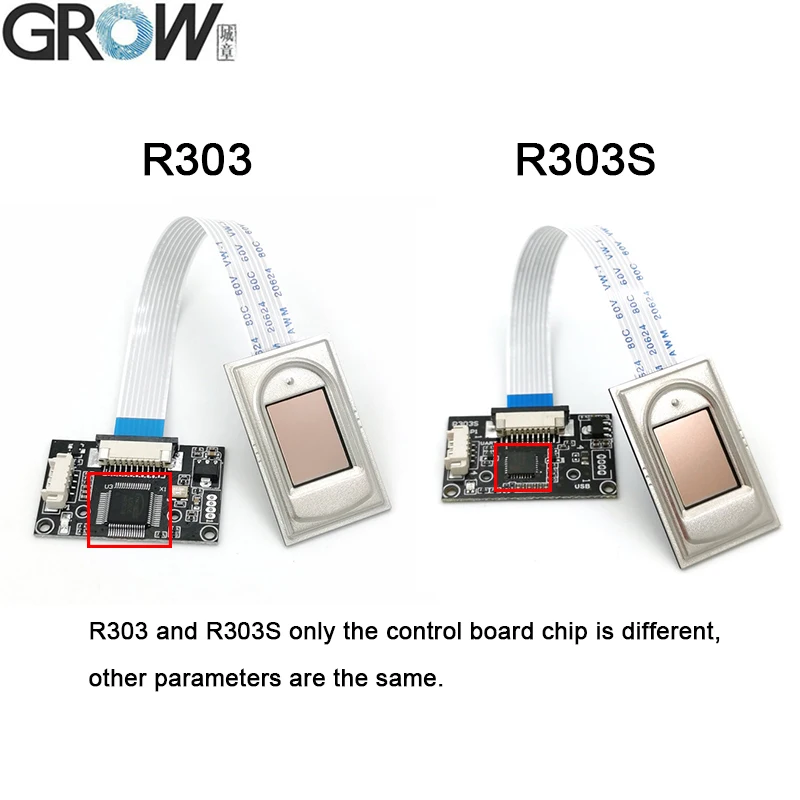

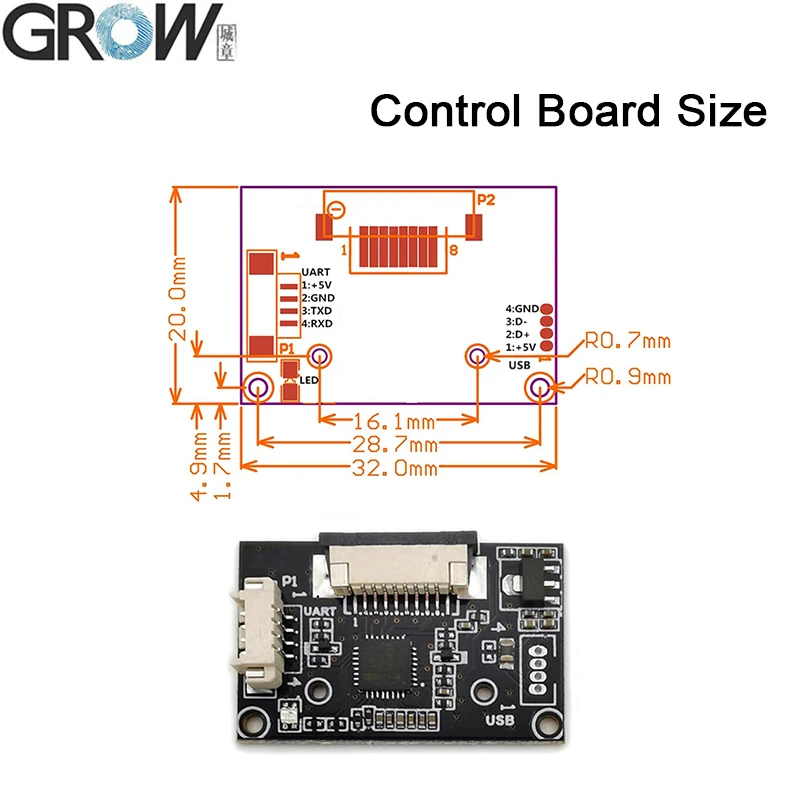

R303 fingerprint module circuit board diagram

_



_

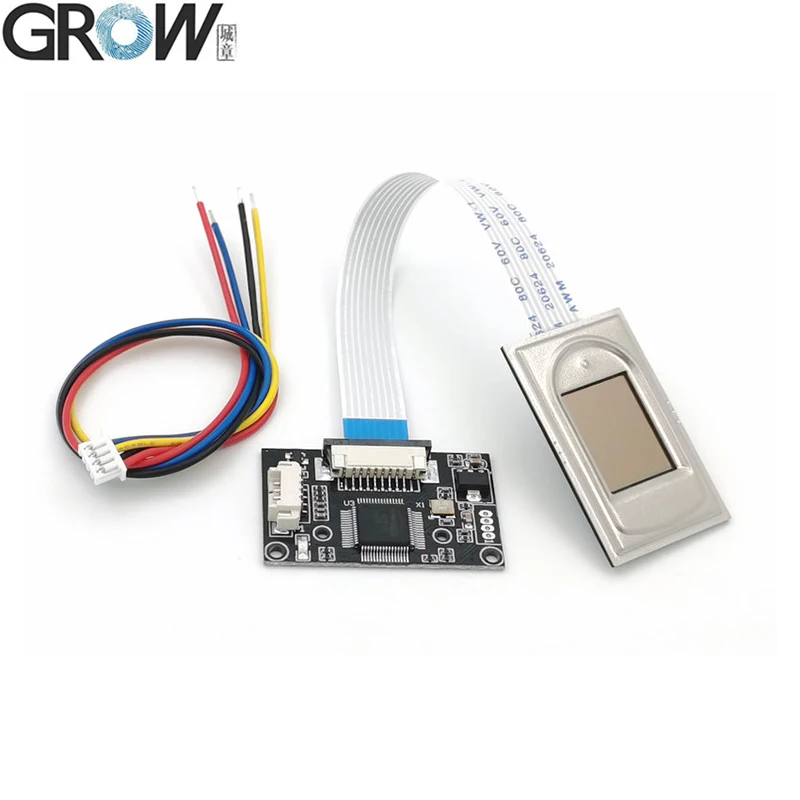

Package Listing
_


CE Certificate

_20180209214440

Brand Name:
grow
Model Number:
R303
Interface:
USB and RS232 (TTL)
Fingerprint module size:
33.4 * 20.4 (mm)
Effective collection area:
11 * 15 (mm)
Fingerprint capacity:
1000
Voltage:
DC 4.2-6.0V
Resolution:
508 DPI
Fingerprint chip:
FPC1020
Sensing array:
208*288 pixel
