GROW R302 New Design Capacitive Fingerprint Access Control Recognition Device Module Sensor Scanner With 150 Finger capacity

stars, based on ( 0 ) reviews
$19.99now$9.90 piece
Quantity Price
10+ $9.50
999 items available
OR

Description

        1. Integrated image collecting and algorithm chip together, ALL-in-One
        2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
        3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box


Specifications

·Interface:USB 2.0 and RS232 (TTL)
·Resolution:508 DPI
·Voltage:DC 4.2-6.0V
·Fingerprint capacity:150
·Fingerprint reader module size:33.4 * 20.4 (mm)
·Effective collection area:8 * 8 (mm)
·ScanningSpeed:< 0.2 second
·Verification Speed:< 0.3 second
·Matching Method:1:1; 1:N
·FRR (False Rejection Ratio):≤0.01%
·FAR (False Acceptance Ratio):≤0.00001%
·Antistatic capacity:15KV
·Abrasive resistance intensity:1 million times
·Peak power consumption:60 mA
·Work environment:-20°C ---55°C
·Work Humidity:0-90%
·Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

The difference between R301T and R302:
R301T Fingerprint module:
Effective collection area: 9.6 * 9.6 (mm)
Sensing array: 192*192 pixel
Fingerprint capacity: 1700

R302 Fingerprint module:
Effective collection area: 8 * 8 (mm)
Sensing array: 160*160 pixel
Fingerprint capacity: 150



Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

You can download the R302 user manual from this website link:



Images

R302N-B-

R302N-D-

R302N-A-

R302N-C-

-1

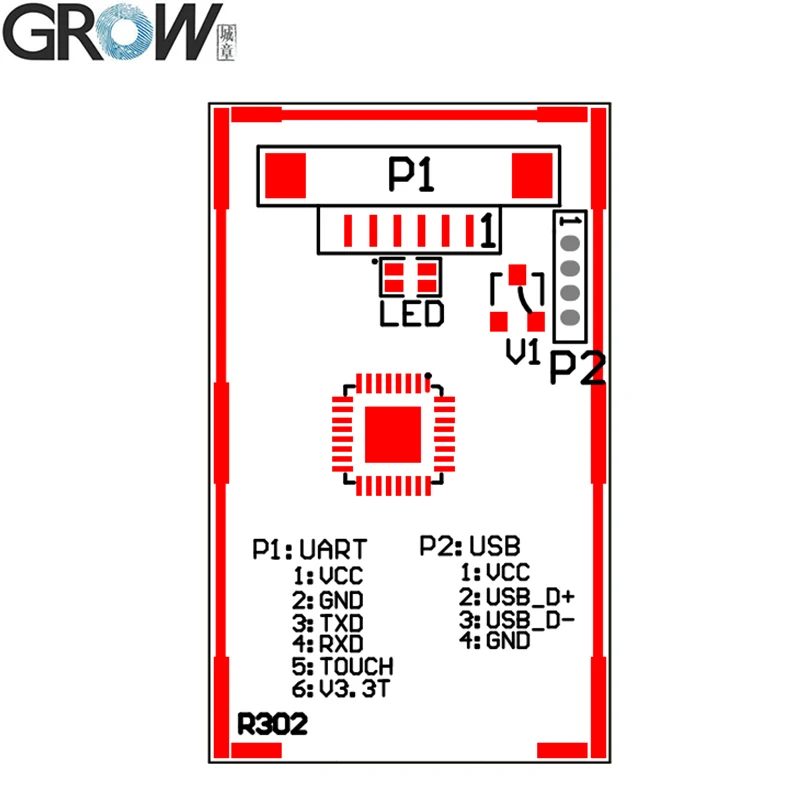

​R302 fingerprint module circuit board diagram

R302N-A-

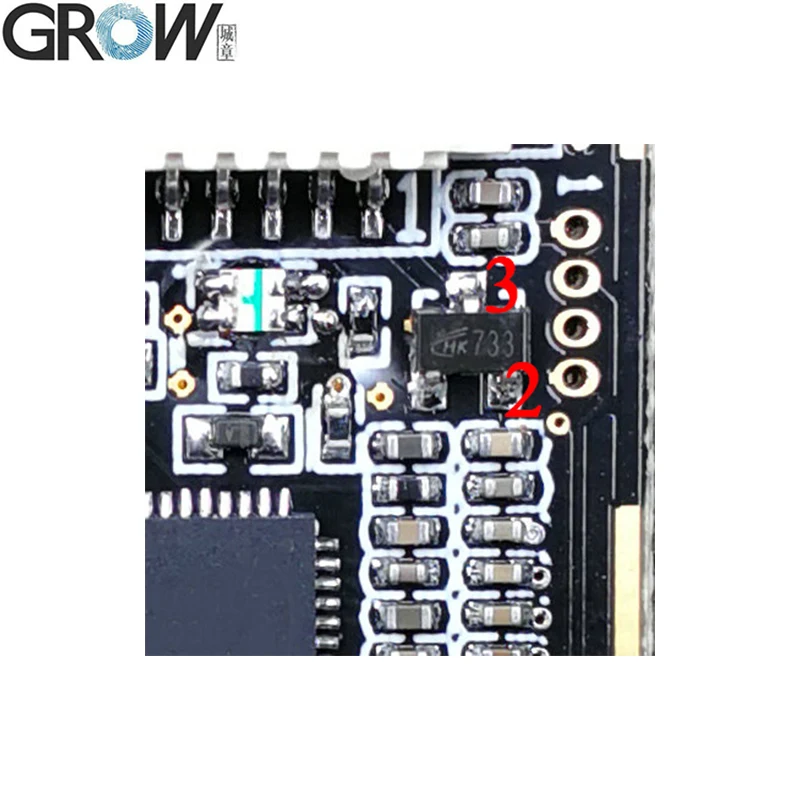

3.3VDC power can be selected to supply when connecting the pin 2 and pin 3.
Attention: Operating carefully, otherwise the R302 will be damaged when wong connection.
R302N-A--

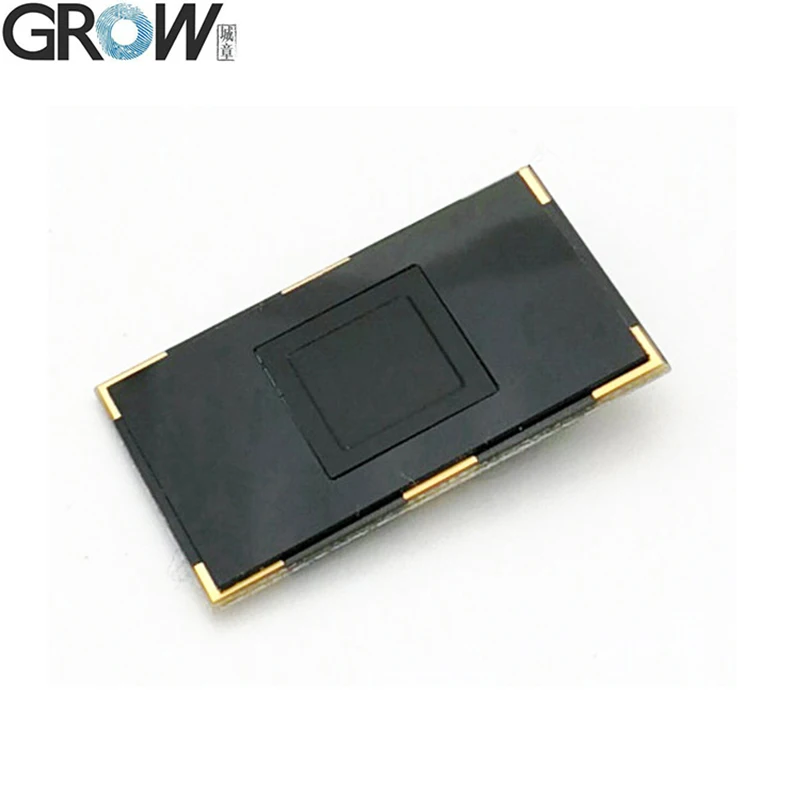

Notice
There is a protective film on the surface of the module,if you need, you can tear off the protective film.
R302-1









Package Listing
R302N-E-


CE Certificate

_20180209214440

Brand Name:
grow
Model Number:
R302
Interface:
USB and RS232 (TTL)
Fingerprint module size:
33.4 * 20.4 (mm)
Effective collection area:
8 * 8 (mm)
Fingerprint capacity:
150
Voltage:
DC 4.2-6.0V
Resolution:
508 DPI
