GROW R300 UART Interface 200 Finger Capacity Capacitive Fingerprint Access Control Recognition Device Module Sensor Scanner

stars, based on ( 0 ) reviews
$11.89now$9.20 piece
Quantity Price
10+ $8.83
999 items available
OR

Description

        1. Integrated image collecting and algorithm chip together, ALL-in-One
        2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
        3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box


Specifications

·Interface:RS232 (TTL)
·Resolution:508 DPI
·Voltage:DC 4.2-6.0V
·Fingerprint capacity:200
·Fingerprint reader module size:33.4 * 20.4 (mm)
·Effective collection area:12 * 12 (mm)
·ScanningSpeed:< 0.2 second
·Verification Speed:< 0.3 second
·Matching Method:1:1; 1:N
·FRR (False Rejection Ratio):≤0.01%
·FAR (False Acceptance Ratio):≤0.00001%
·Antistatic capacity:15KV
·Abrasive resistance intensity:1 million times
·Peak power consumption:60 mA
·Work environment:-20°C ---60°C
·Work Humidity:10-85%
·Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)




Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

You can download the R300 user manual from this website link:



Images

4



3



6

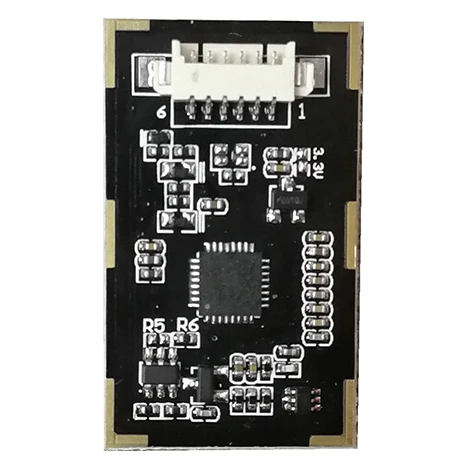

R300 fingerprint module circuit board diagram

2





7

Brand Name:
grow
Model Number:
R300
Interface:
RS232 (TTL)
Fingerprint module size:
33.4 * 20.4 (mm)
Effective collection area:
12 * 12 (mm)
Fingerprint capacity:
200
Voltage:
DC 4.2-6.0V
Resolution:
508 DPI
