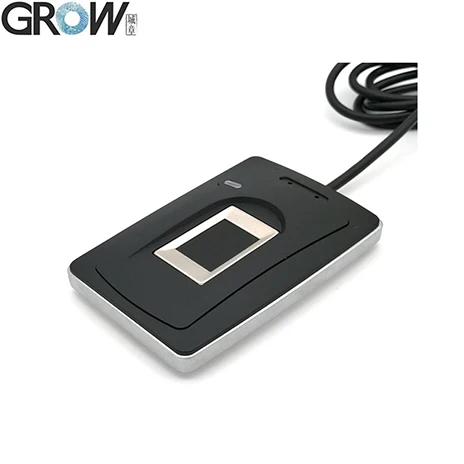

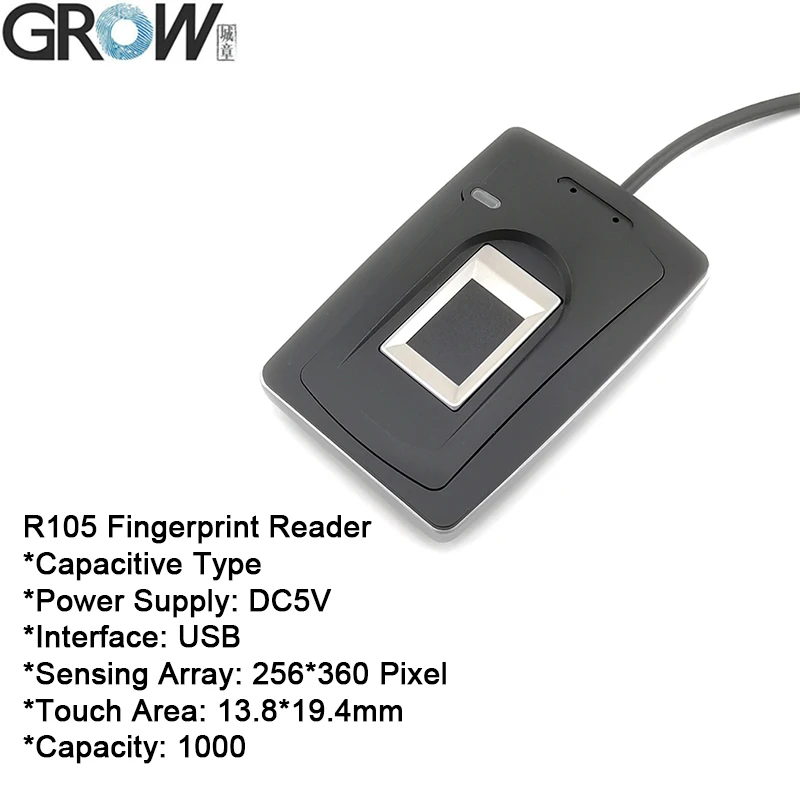

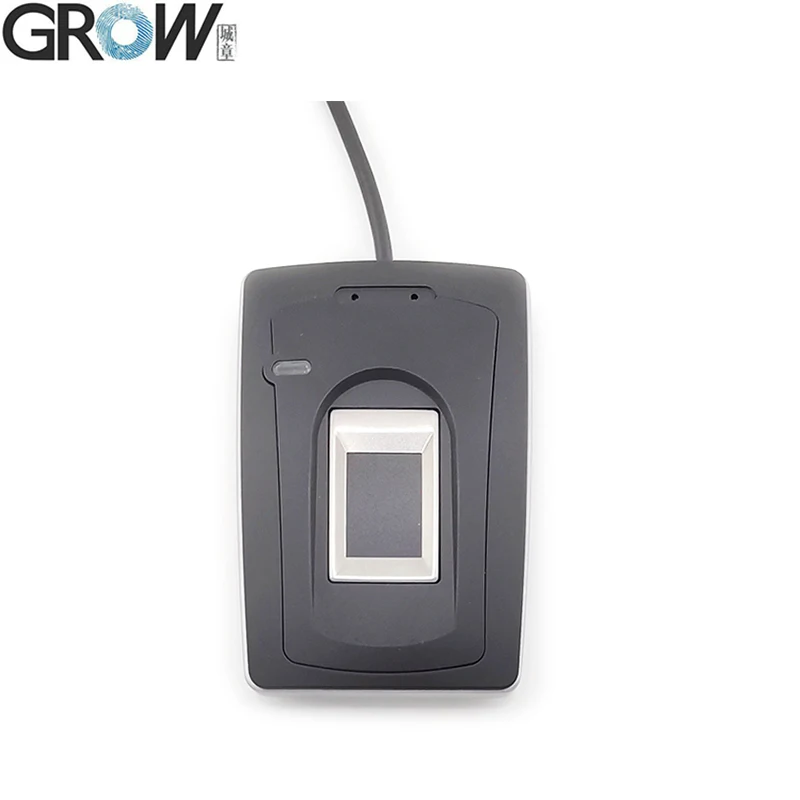

GROW R105 Biometric Desktop Big Size Capacitive USB Fingerprint Reader With Free SDK

R105 capacitive fingerprint reader adopts a large-area fingerprint acquisition chip with 256*360 pixel images.



R105 integrates image acquisition chip and fingerprint algorithm chip, and has fingerprint entry, image processing, feature extraction, template generation, template storage, fingerprint comparison (1:1) or fingerprint search (1: N) and other functions.



At present, R105 fingerprint reader provides USB interface, which can constitute fingerprint collection system, online fingerprint analyzer, online fingerprint attendance machine, fingerprint native protection system and fingerprint network login system through matching application software.We provide SDK files for develop.

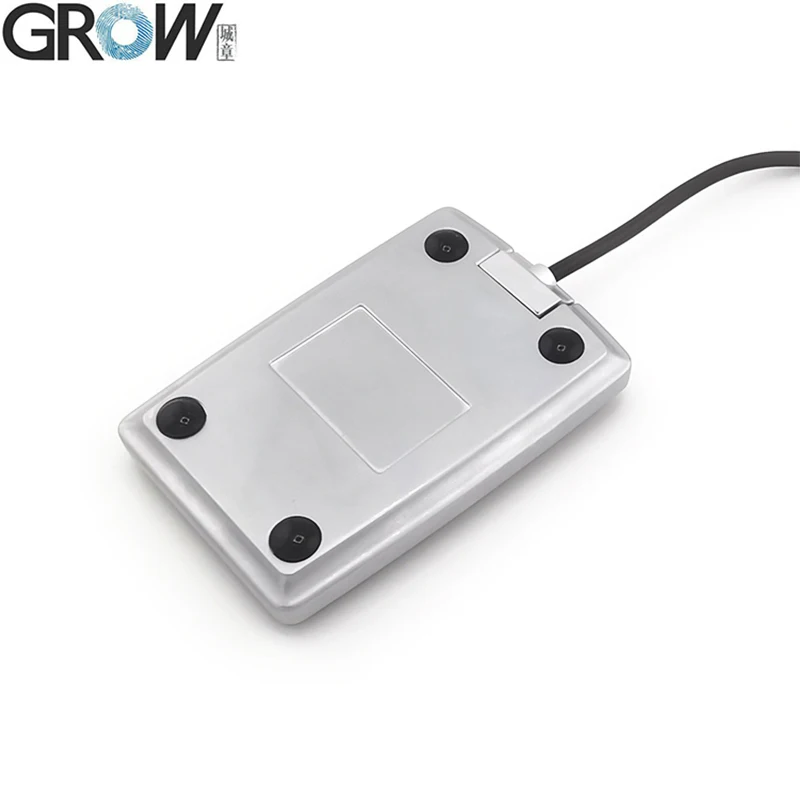

Material:Zinc alloy pedestal

The thickness is only 1.3 cm.





·High performance fingerprint reader for precise authentication with PC or network security

·Excellent adaption for dry, wet, harsh fingerprint

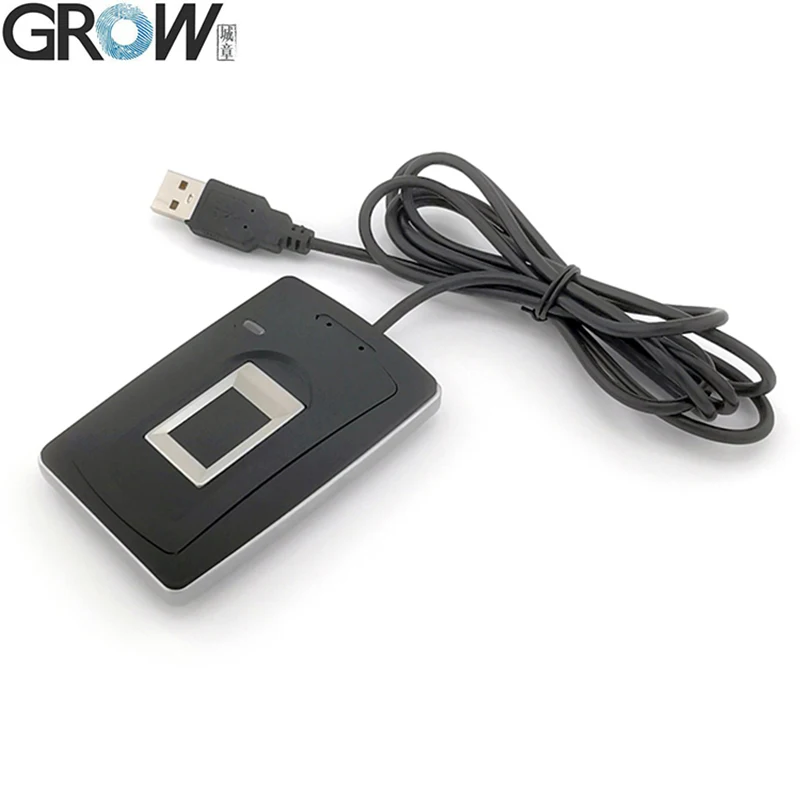

·USB interface for high speed communication

·Windows98,Me,NT4.0,2000,XP,Vista WIN7,Android support

·Outstanding authentication performance combined with SDK

·Adopts zinc alloy and well protect the fingerprint sensor

·High speed fingerprint identification algorithm engine

·Self study function

·Fingerprint feature data read/write functions

·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured fingerprint

·Identify Downloaded Feature with Captured fingerprint

·Security Level setting









SPECIFICATION
Model	R105
Type	USB Capacitive Fingerprint Reader

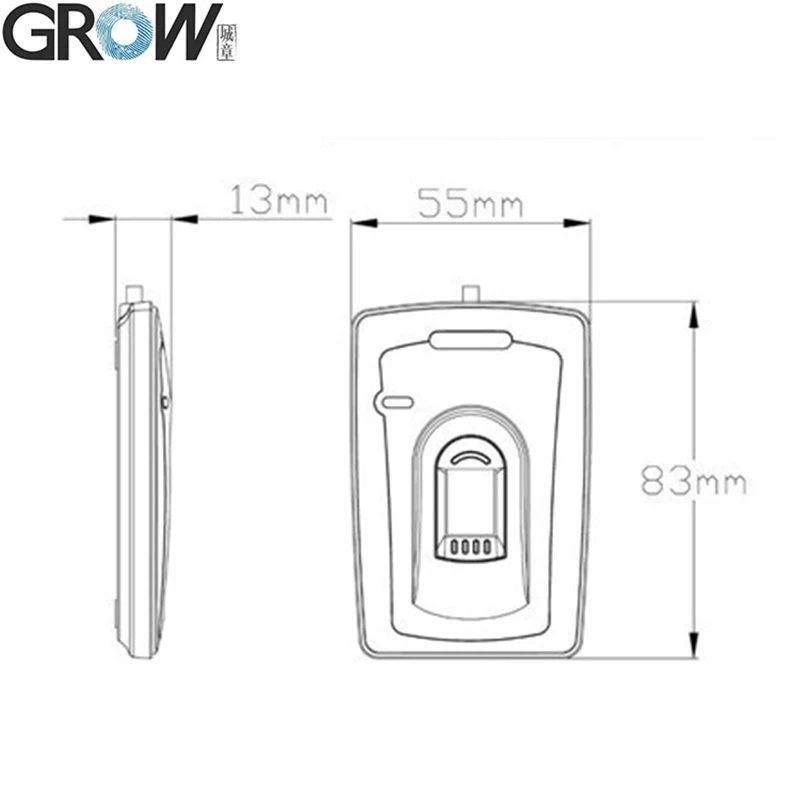

Dimension	83*55*13 mm(L*W*H)
Fingerprint capacity	1000
Resolution	508 DPI
Voltage	DC 5V
Working current	50mA
Peak current	60mA
Sensing array	256*360 pixel
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1 :N
FRR	≤1%
FAR	≤0.0001%
Antistatic capacity	15KV
Abrasive resistance intensity	1 million times
Work environment	-20°C ---45°C
Work Humidity	10-85%
Storage environment	-40°C ---55°C
Storage Humidity	<85%







If you need a fingerprint reader with high cost performance, you can use R101S/R101 fingerprint reader. The difference is that the acquisition chip and the fingerprint characteristic code is different, and other things such as interface and instructions are the same.







·Support Windows98,Me,NT4.0,2000,XP,Vista WIN7,Android
·Provide Free SDK Files



You can dowload the R105 SDK from the following website:

https://www.dropbox.com/sh/pznvlzx8qx5nfr3/AABpzhSyjqH0qWNYgMvxqAA9a?dl=0



You can download the R311 user manual from this website link:

https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0





​If need SDK files,pls contact us.
