GROW K236-A+R502-AW DC6V 4*AAA Battery Case With Fingerprint Control Board Admin/User Fingerprint For Door Access Control System
Model | R502-AW |
Type | Capacitive Fingerprint Module |
Interface | UART(TTL) |
Resolution | 508 DPI |
Voltage | DC 3.3V |
Fingerprint Capacity | 200 |
Sensing array | 192*192 pixel |
Working current | 20mA |
Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |

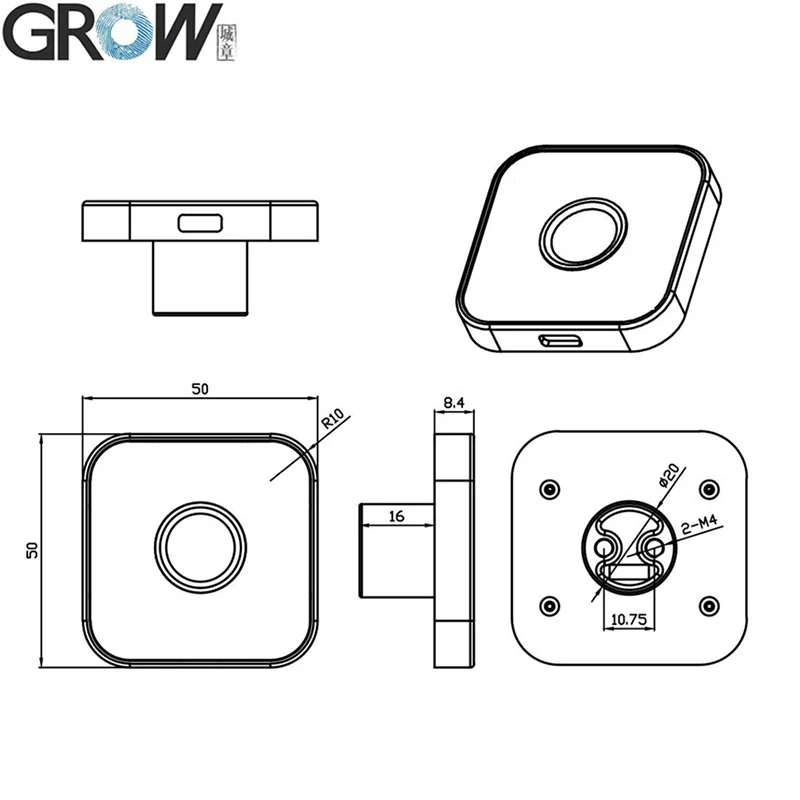

Fingerprint module external size | 50*50*8.4 (mm) |
Effective collection area | Diameter 15.5 (mm) |
Enclosure material | Zinc alloy |
Connect control board | K200-3.3/K202/K215-V1.2/K216 |

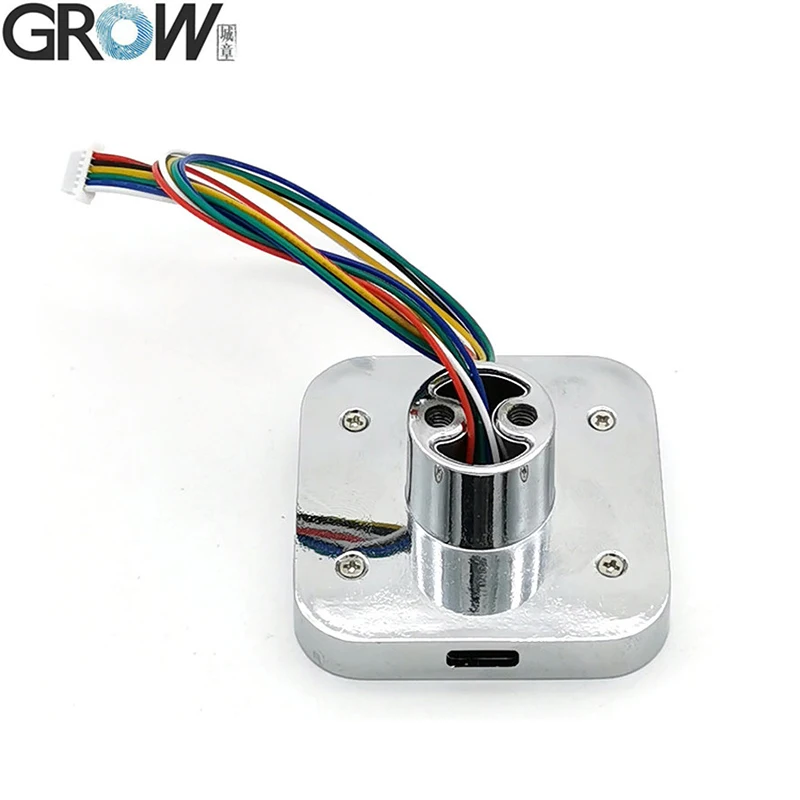

Connector | MX1.0-6Pin |

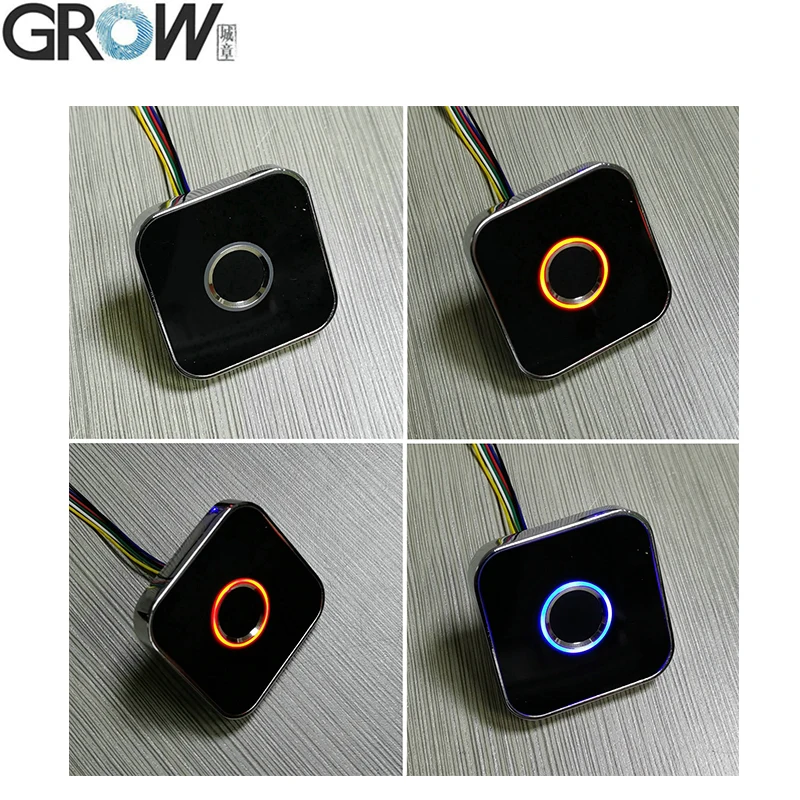

LED Control | YES |
LED Color | Purple and Blue and Red |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤1% |
FAR | ≤0.001% |
Work environment | -20C ---60C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
·Provide User Manual

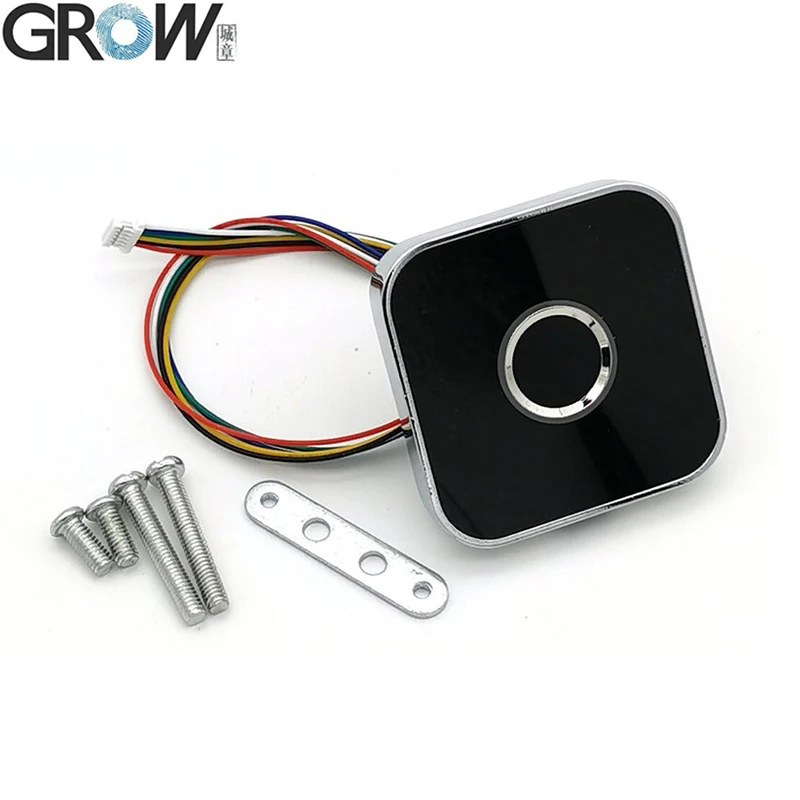

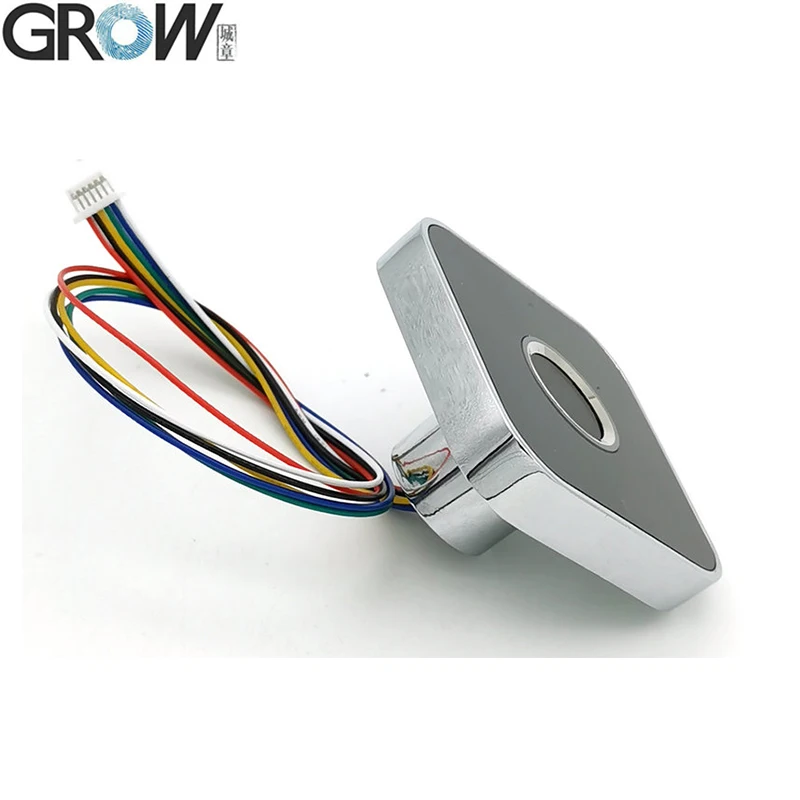

R502-AW Fingerprint Module

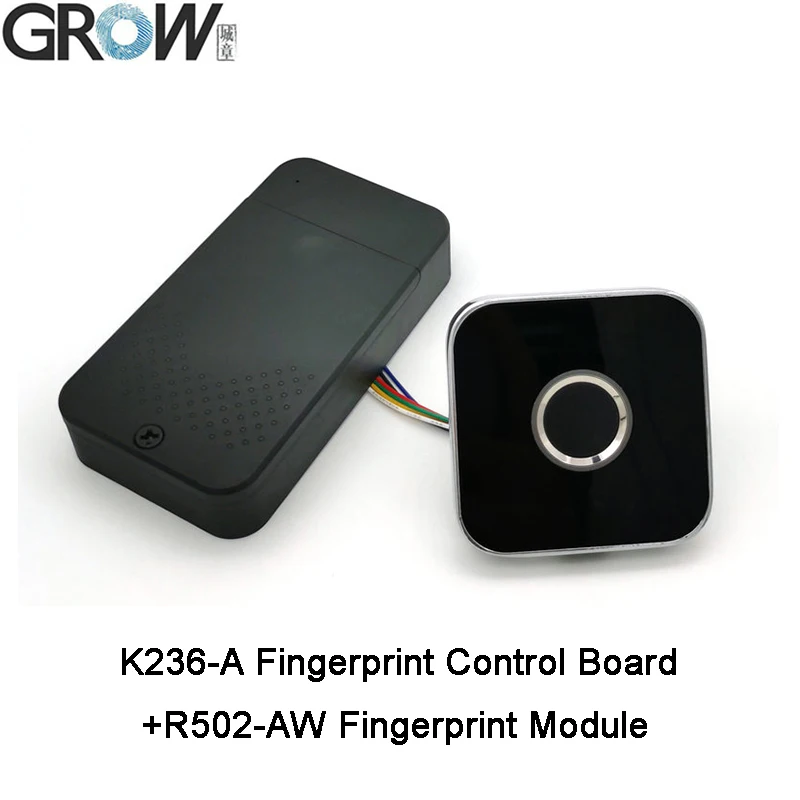

K236-A Fingerprint Control Board+R502-AW Fingerprint module(Not including the battery)
- Brand Name:
- grow
- Model Number:
- K236-A+R502-AW
- Fingerprint capacity:
- 80
- Power Supply:
- DC 6V (4*AAA Battery)
- Standby current:
- <7uA
- Output:
- DC5-6V, 300mA
