GROW K219-B+G16 DC12V Admin/User Password Fingerprint Control Board With 6 Relays For Door Access Control System

stars, based on 0reviews
$29.00now$27.90 piece
Quantity Price
10+ $26.78
999items available
Contact Us
OR
Description

·Power supply: DC12V
·Output: Relay(Max. current: 10A)
·Fingerprint capacity:
Administrator Fingerprint: 10 pieces
User Fingerprint: 60 pieces(10 fingerprints per relay position)
·Password capacity:
Administrator Password: 1 group(Default password is 123456)
Relay Password: 6 groups(1 group per relay position)
·Management: SET Button or Fingerprint or Password

K1-K6 SET Button corresponds to No.1-6 Relay Output
(Before operation, it is necessary to wake up standby. Touch the fingerprint module, and the indicator light is on, then it can be set.)



1. Have 6 SET Buttons
2. Have 6 Relays
3. Have 10 Pieces Admin Fingerprint
4. Have 1 Pieces Admin Password
5. Each Relay Can Store 10 Pieces User Fingerprint, Total 60 Pieces User Fingerprint
6. Each Relay Can Store 1 Pieces Relay Password, Total 6 Pieces Relay Password
7. One SET Button Controls One Relay
8. Same Fingerprint Can be Opened with Different Relay at the Same Time
9. Use SET Button to Register User Fingerprints to Different Relay
10. Use SET Button to Delete Single Relay Postion's Fingerprint
11. Use SET Button to Delete All Relay Position's Fingerprint
12. Have Admin Password/Fingerprint,User Fingerprint,Relay Password
13. Can Adjust the Time of Different Relays (0.5s,1s,2s,3s,10s,20s)

1.SET Button(K1-K6)
1.1 Add User fingerprint:
Press SET button shortly,blue indicator light flash fast means system in register state, put the finger in the collection area,fingerprint register successful when hearing music. 10 pieces fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds to exit.[Each SET button(K1-K6) can register 10 pieces fingerprints]
1.2 Delete fingerprint:
1.2.1 Delete single relay position fingerprints: Long press the corresponding SET button,blue indicator light flash fast,hear long ”Di” beep,loosen the finger,the relay indicator light on, means this location of the fingerprints are deleted;
1.2.2 Delete all relay position fingerprints(Back to factory default):Long press any SET button to hear long “Di” beep twice, all indicator light on, means initialization operation successful,back to factory default.


2.Keypad Settings
For all operation Settings,need to press the administrator fingerprint/password first. The default password is 123456. Password length: 3-6 bits

2.1 Set Administrator Fingerprint:Touch the fingerprint module, and the indicator light is on,press 123456【OK】1【OK】
Blue indicator light flash fast means system in register state, put the finger in the collection area,fingerprint register successful when hearing music. 10 pieces fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds to exit.If the fingerprints is full, will have “Di Di Di” warning tone.
In addition to setting functions, administrator fingerprint can unlock all relay switches.
If unlocking No.3 relay, press the number 3 after the administrator fingerprint passes.
Note: When the administrator fingerprint is repeated with the user fingerprint,priority is given to the administrator fingerprint function.

2.2 Clear the System and Back to Factory Mode:Pass the administrator's fingerprint/password,enter in edit mode: Press:【OK】 1【C】(Long press C)
All relay lights are on, indicating that the emptying is successful and back to factory mode.

2.3 Set Administrator Password: Pass the administrator's fingerprint/password, enter in edit mode: Press:【OK】2【OK】New Password【OK】
After the password is set successfully, the previous password will be overwritten and invalid. The admin password only can be used for admin settings and cannot be unlocked.(Password length: 3-6 bits)

2.4 Set User Fingerprint: Pass the administrator's fingerprint/password, enter in edit mode: Press:【OK】3【OK】Relay Position(1-6)【OK】
Blue indicator light flash fast means system in register state, put the finger in the collection area,fingerprint register successful when hearing music. 10 pieces fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds to exit.If the fingerprints is full, will have “Di Di Di” warning tone.(10 fingerprints per relay position)
Note: when one finger registered in several relay positions at the same time,the finger can open different relays, and the interval time is 0.5 seconds

2.5 Delete User Fingerprint:Pass the administrator's fingerprint/password, enter in edit mode: Press:【OK】3【C】Relay Position(1-6)【C】(Long press the second C)
The light in this location will turn on and can hear music, indicating that the fingerprint of the relay position has been deleted successfully

2.6 Set Relay Password: Pass the administrator's fingerprint/password, enter in edit mode: Press:【OK】4【OK】Relay Position(1-6)【OK】New Password【OK】
The password length is 3-8 digits. The relay password cannot be repeated with the administrator password. If repeated,will have “Di Di Di” warning tone.

2.7 Delete Relay Password: Pass the administrator's fingerprint/password, enter in edit mode: Press:【OK】4【C】Relay Position(1-6)【C】(Long press the second C)
The light in this location will turn on and can hear music, indicating that the password of the relay position has been deleted successfully.

2.8 Set Relay Mode: Pass the administrator's fingerprint/password, enter in edit mode:Press:【OK】5【OK】Relay Position(1-6)【OK】Relay Mode(1-6)【OK】
Mode 1: Relay Time 0.5s
Mode 2: Relay Time 1s
Mode 3: Relay Time 2s
Mode 4: Relay Time 3s
Mode 5: Relay Time 10s
Mode 6: Relay Time 20s

K219-B only can be used together with G16 fingerprint module



·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual


You can dowload the K219-B user manual from this website link:
https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0

K219-B+G16 Operation Video on Youtube: https://youtu.be/0pERTWnO0R4


If need SDK files,pls contact us.

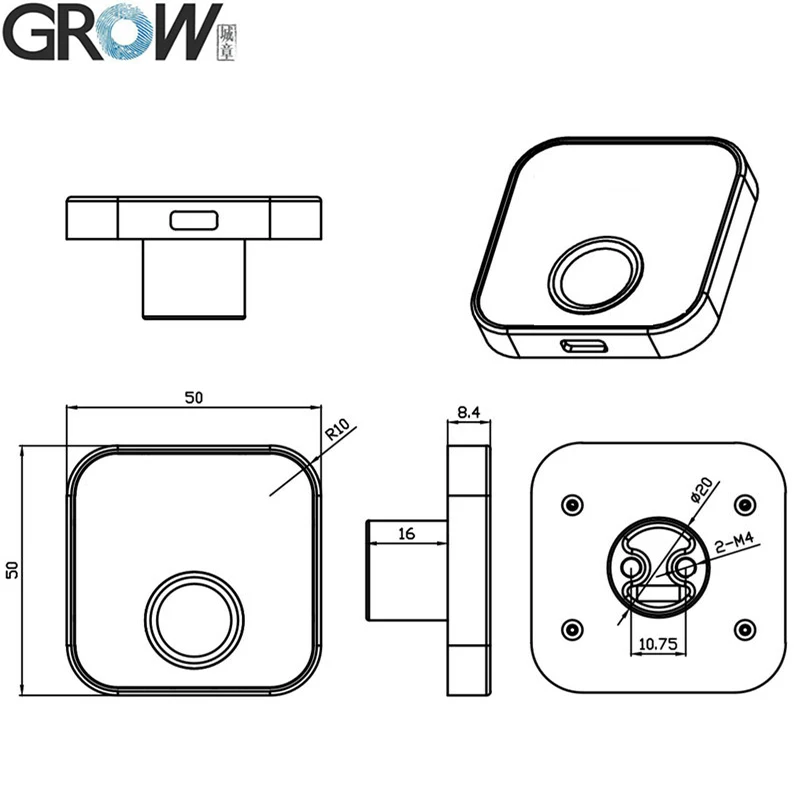

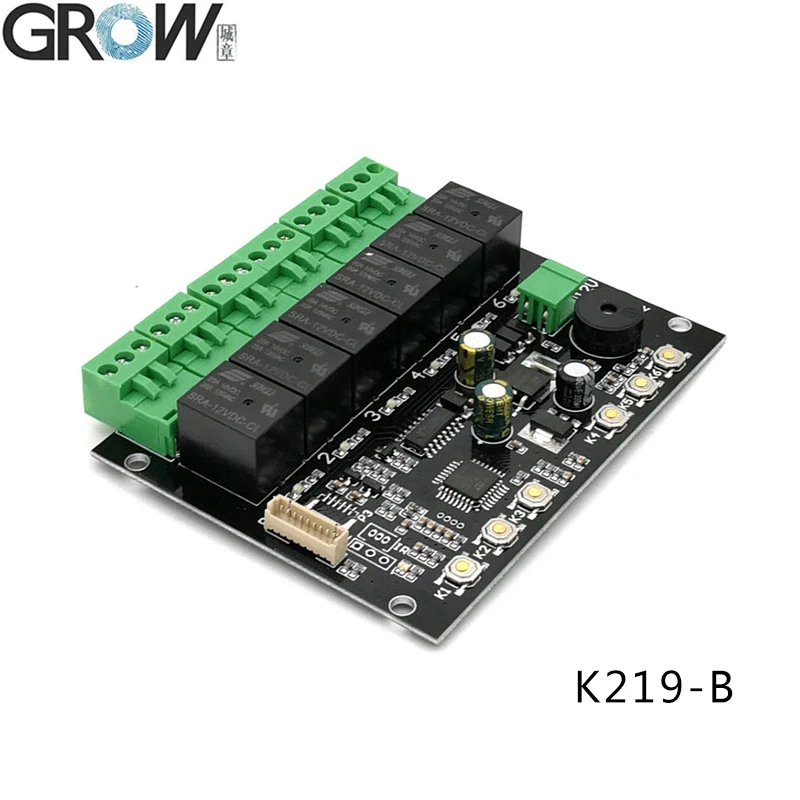

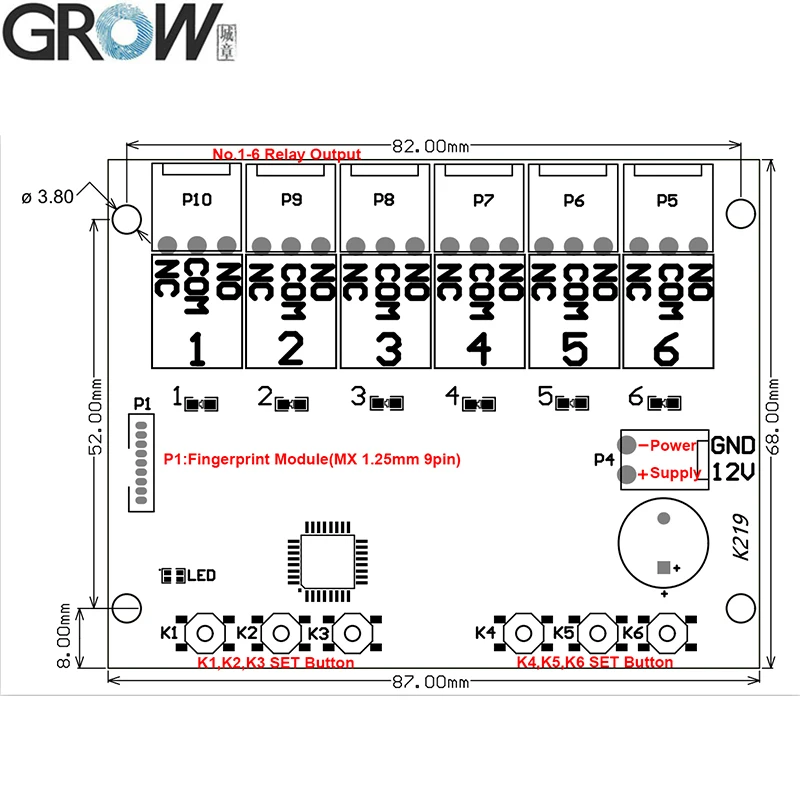

K219-B Circuit board diagram

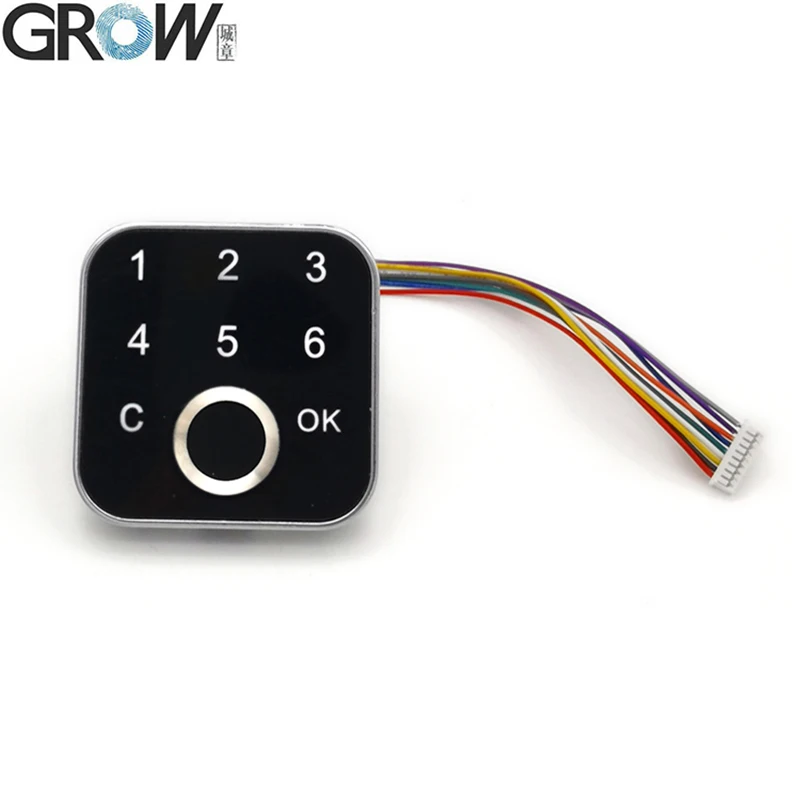

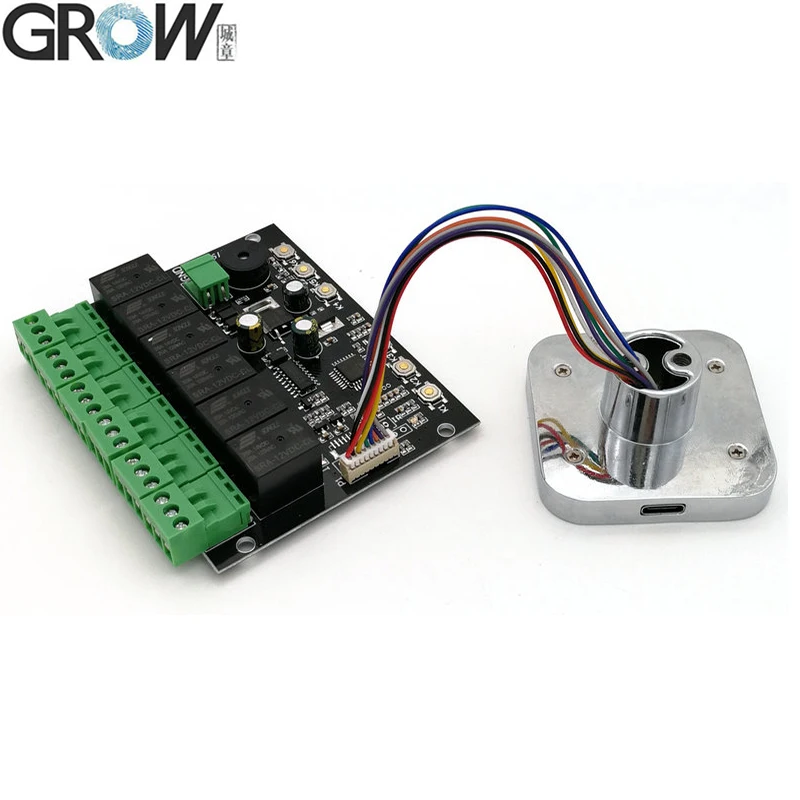

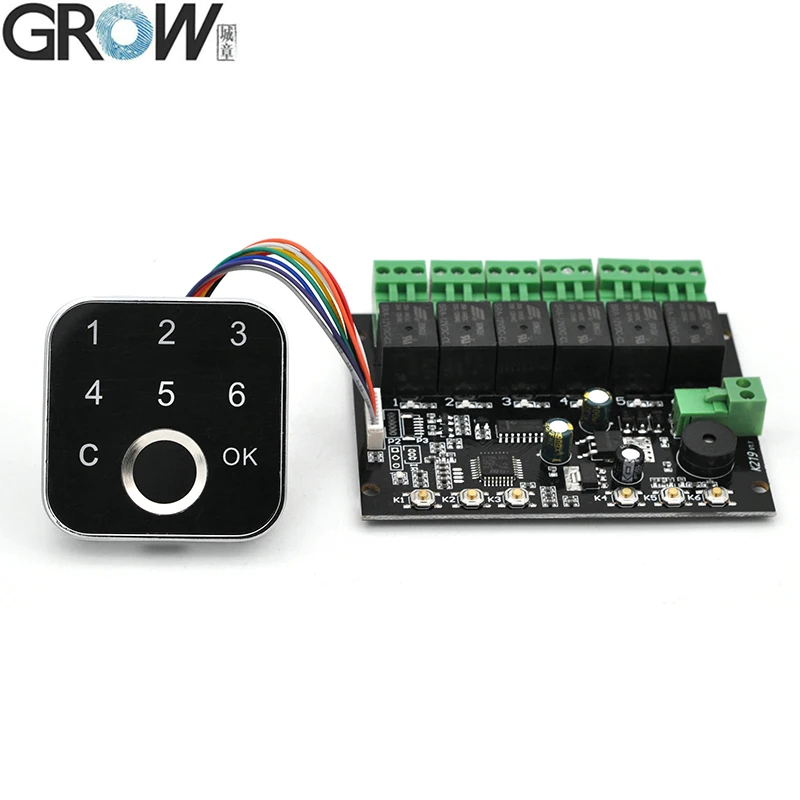

K219-B Fingerprint Control Board+G16 Fingerprint module




Brand Name:
grow
Model Number:
K219-B+G16
Fingerprint capacity:
70
Power Supply:
DC 12V
Standby current:
6mA(DC12V)
Output:
Relay(Max. current:10A)
