GROW GM861XS Small 1D/2D Bar Code QR Code Barcode Reader Module UART/USB Interface White Green LED

stars, based on 0reviews
$15.80now$11.90 piece
Quantity Price
10+ $11.42
999items available
Contact Us
OR
Description






 Parameter

 Performance

Sensor

 CMOS

Scan Mode

 640*480

Indicator Light

 Green lightas read successfully


Read Code Type

1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128,

Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5,

Matrix2of5, Code 39,Code11, MSI-Plessey,

GS1 Composite,GS1-Databar (RSS)

2D: QR Code, Data Matrix, PDF417, Micro QR, Micro PDF417, Aztec

GM861XS

Reading Distance


 5-30cm

Contrast*

＞25%

Scan Angle**

Roll:360°Pitch:65°Yaw:65°

Viewing Angle

67°(Horizontal)53°(Vertical)

Accuracy of reading*

≥10mil




Mechanical/electrical Parameters:

Parameter

  Performance

Interface

TTL-232/USB

Size(mm)

  Diameter 17.2mm  Height 4.9mm

Weight

1g

Prompting mode

LED Indicator

OperatingVoltage

3.3V

Operation Current

70mA(Max)

Standby Current

≤6mA(Typical)

Startup time

≤250mS (Typical)



·Provide User Manual

·CE Certificate


You can download the GM861XS user manual from this website link:

GM861XS video on Youtube: https://youtu.be/wx8jF7Zq_Xo

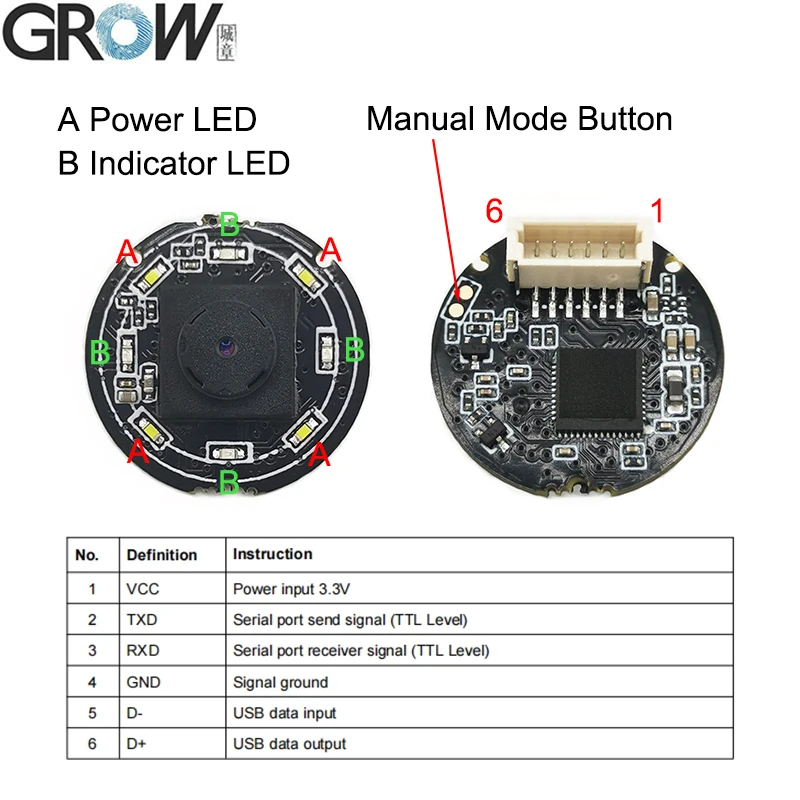

Interface Definition

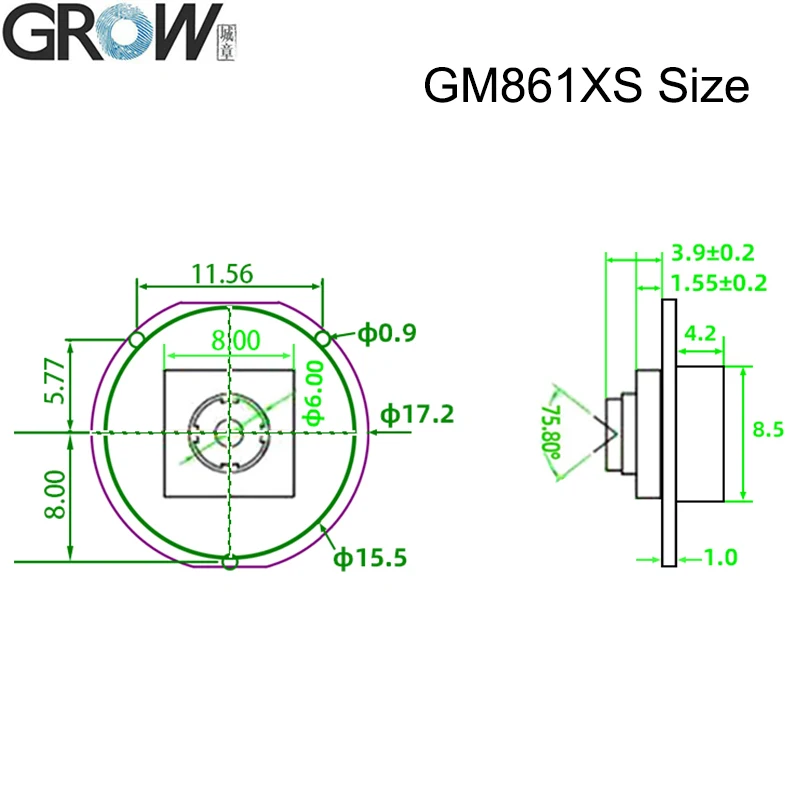

Size


Brand Name:
grow
Model Number:
GM861S
Operating Voltage:
3.3V
Operating Current:
70mA
Size:
Diameter 17.2mm
Weight:
1g
Serial Baud Rate(UART):
9600
Scan Mode:
640*480
