GROW GM805 Series DC5V USB/TTL232 Interface 1D/2D QR Bar Code Reader PDF417 Barcode Scanner Module for Arduino Windows Android

stars, based on 0reviews

~~$13.00~~$11.00 piece

Quantity Price

10+ $10.56

Description
Item specifics

GM805 serial have GM805-S and GM805-L model.

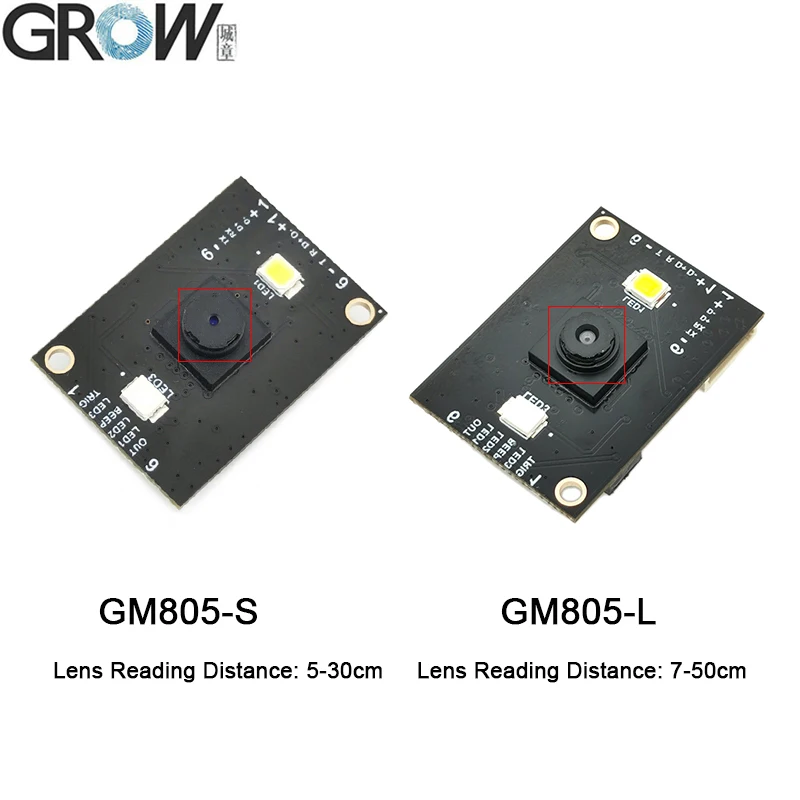

The only difference between GM805-S and GM805-L is the lens.

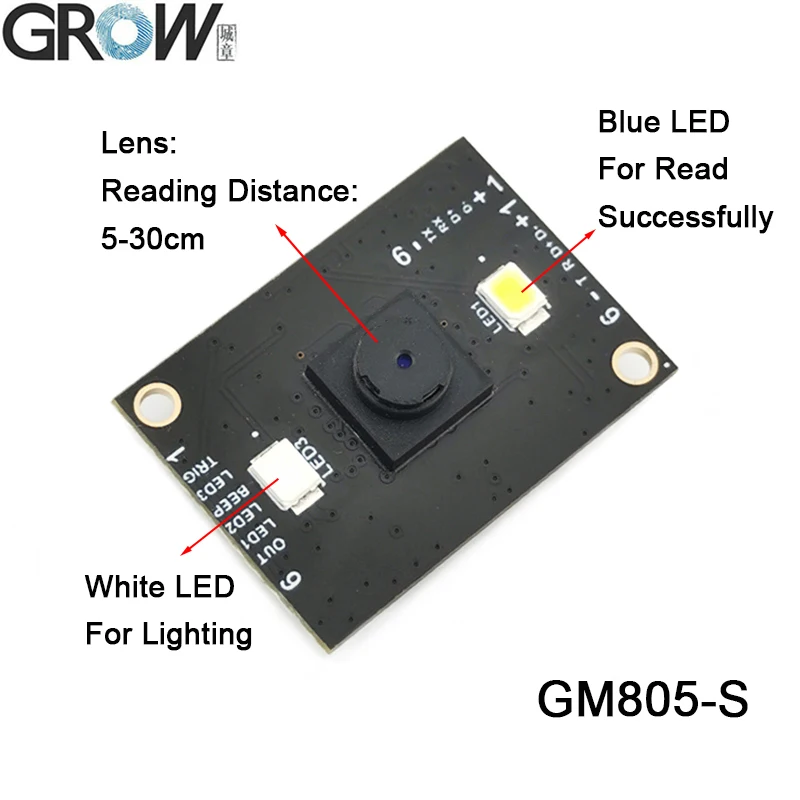

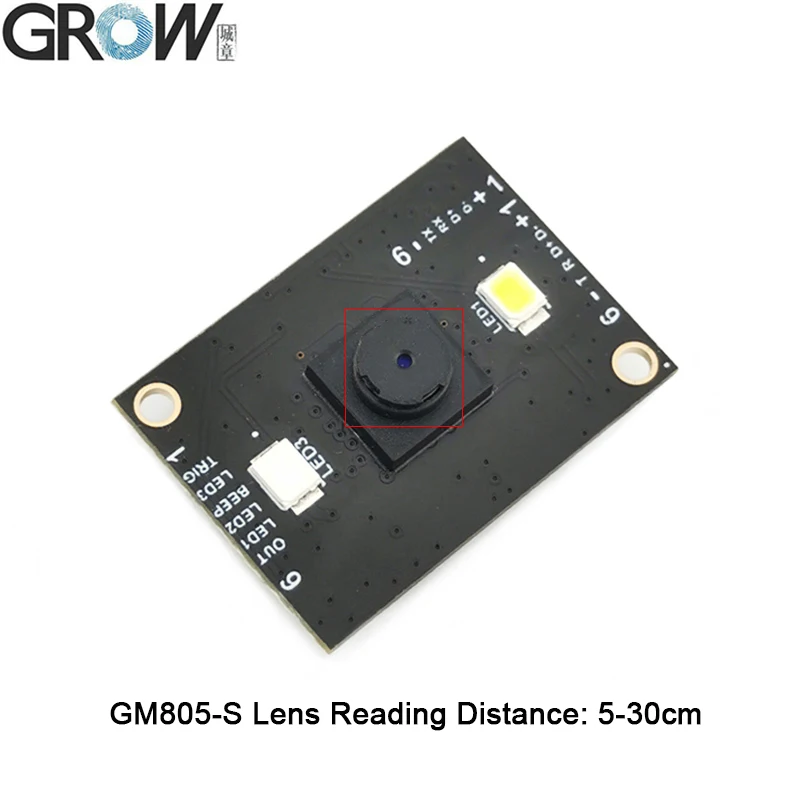

GM805-S lens reading distance is 5-30cm.

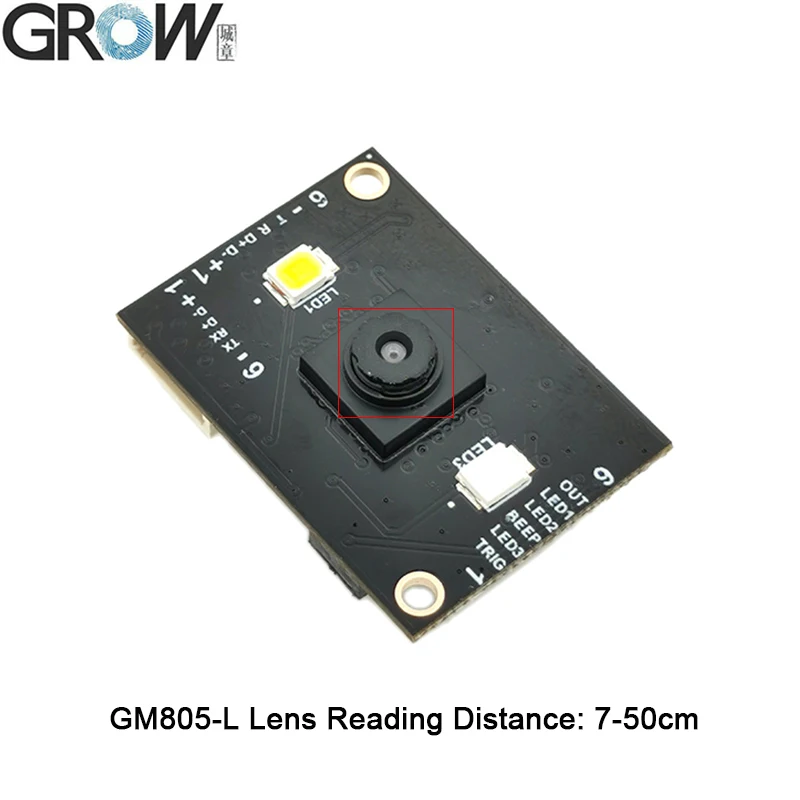

GM805-L lens reading distance is 7-50cm.

(The actual data depends on the size and content of the code)

GM805 serial bar code reader module is a high performance scanner, can read 1D bar code easily and read 2D bar code with high speed. It also wins high scan speed for linear code, even for bar code on paper or screen.

GM805 serial bar code reader module is an advanced bar code decoding algorithm which developed on image recognition algorithm, can easily and accurately read bar code, simplify secondary development.

Parameter	Performance
Sensor	CMOS
Scan Mode	640*480

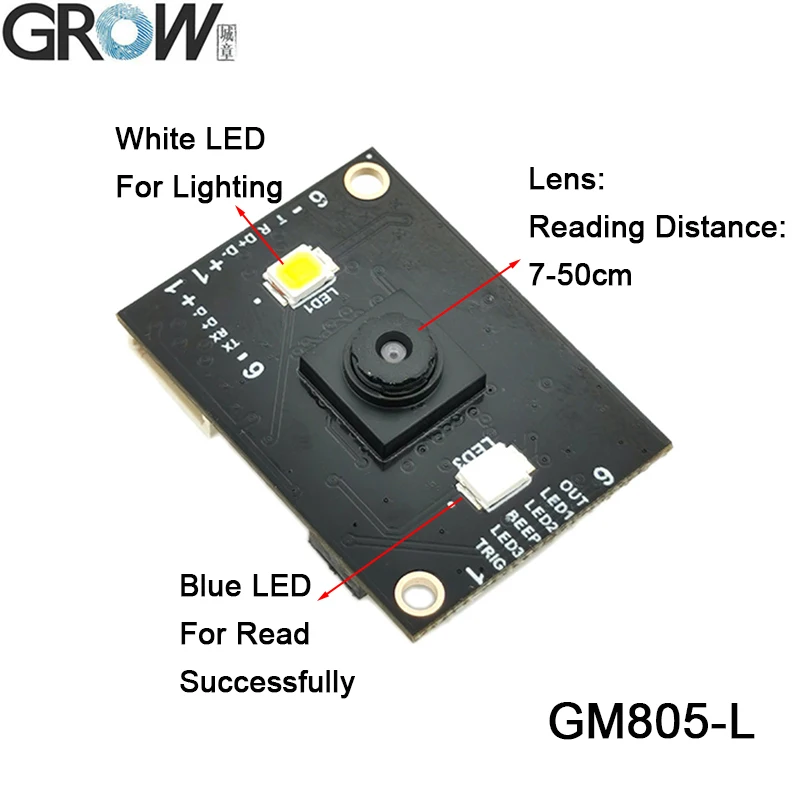

Lighting	White LED
Indicator Light	Blue LED
Read Code Type	1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5, Matrix2of5, Code 39,Code11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS)
Read Code Type	2D: QRCode, DataMatrix, PDF417
GM805-S Reading Distance	5-30cm
GM805-L Reading Distance	7-50cm
Contrast*	＞25%
Scan Angle**	Roll:360°Pitch:65°Yaw:65°
Viewing Angle	67°(Horizontal)53°(Vertical)
Accuracy of reading*	≥10mil

Mechanical/electrical Parameters:

Parameter	Performance

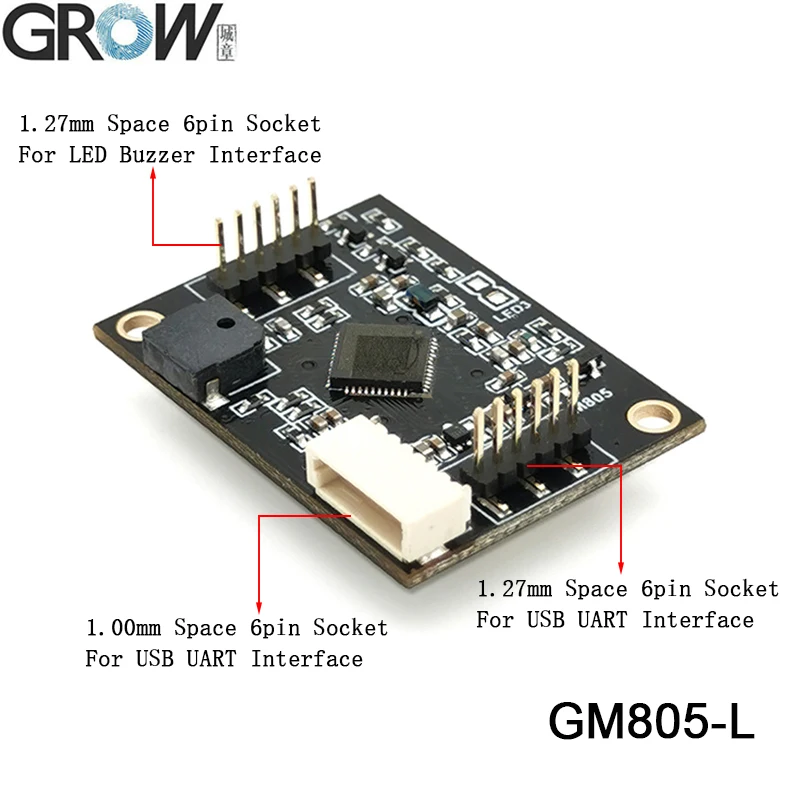

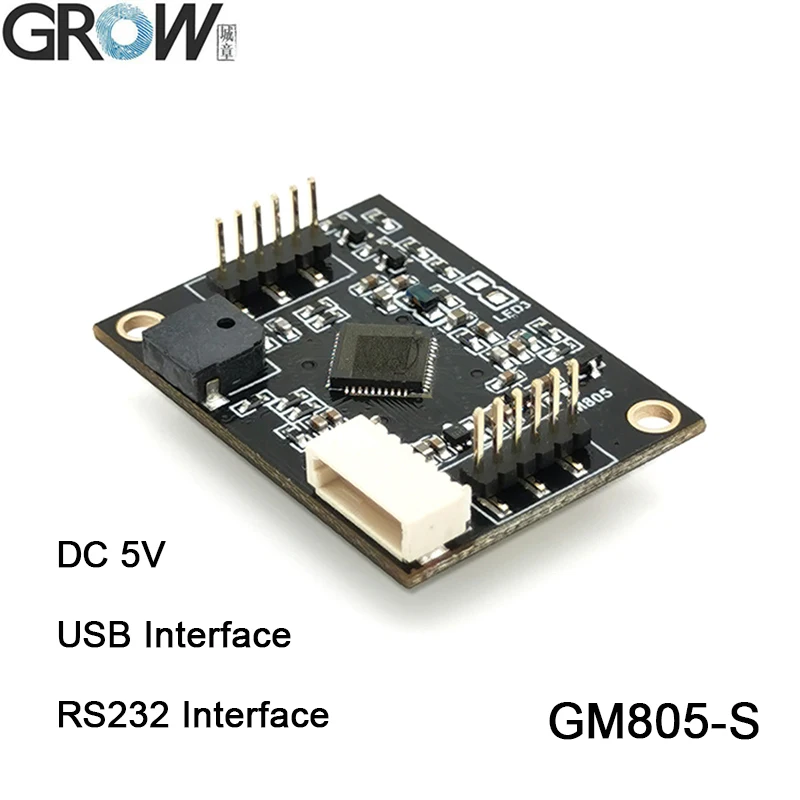

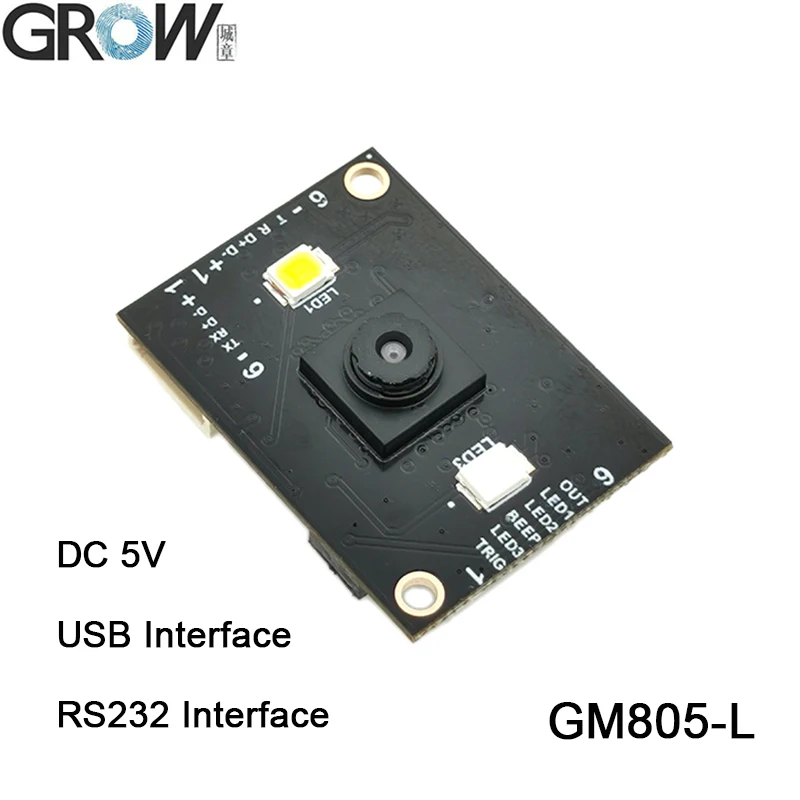

Interface	TTL-232/USB

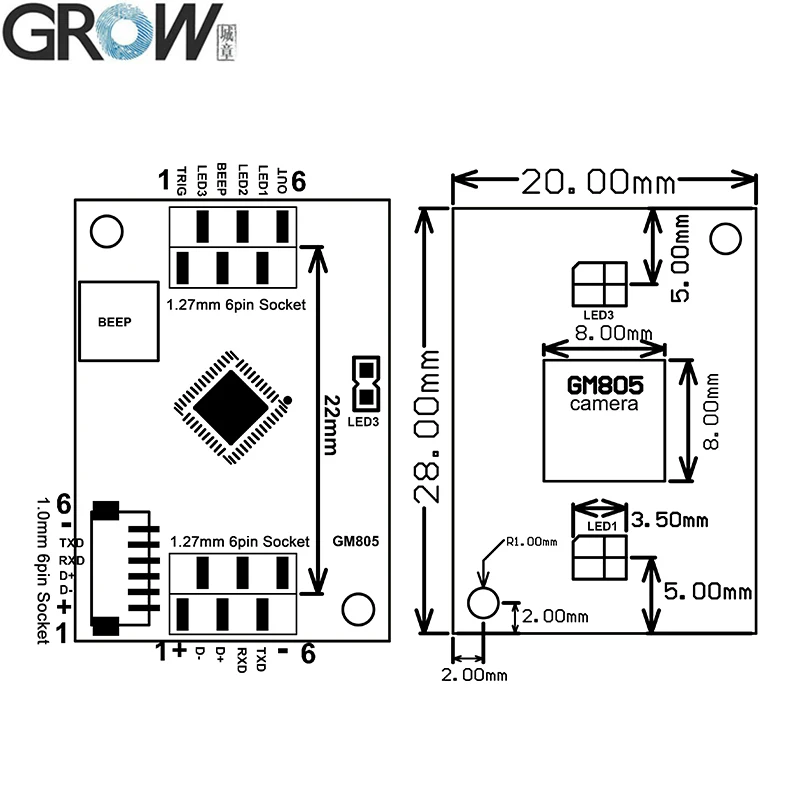

Size(mm)	28*20 mm
Weight	2.1g
Prompting mode	Buzzer LED Indicator
OperatingVoltage	5V
Operation Current	70mA(Max)
Standby Current	≤6mA(Typical)
Startup time	≤250mS (Typical)

Environmental Parameters:

Parameter	Performance
Operatingtemperature	-20℃~60℃
Storage Temperature	-40℃~+100℃
Operating Humidity	5%~95%（Non-Condensing）
Environmental Light	Normal indoor light source
Fall	Withstand 1.2 m drop on concrete floor (50 times 1.2 m drop on concrete floor repeatedly)

·Provide User Manual

You can download the GM805 Serial user manual from this website link:

https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0

1* Barcode Scanner+1.0 mm Serial Cable
