11%OFF

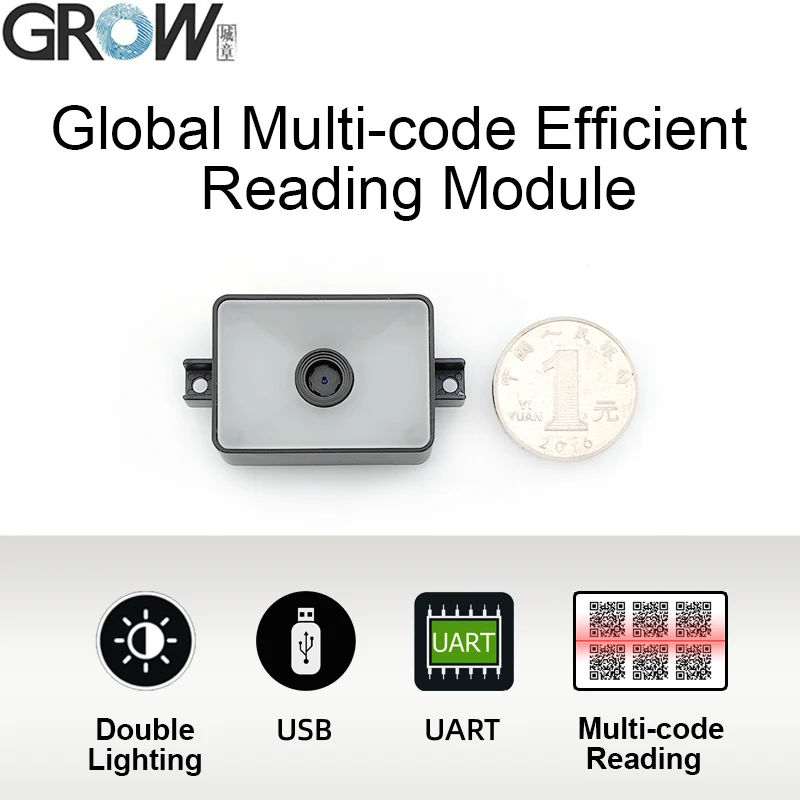

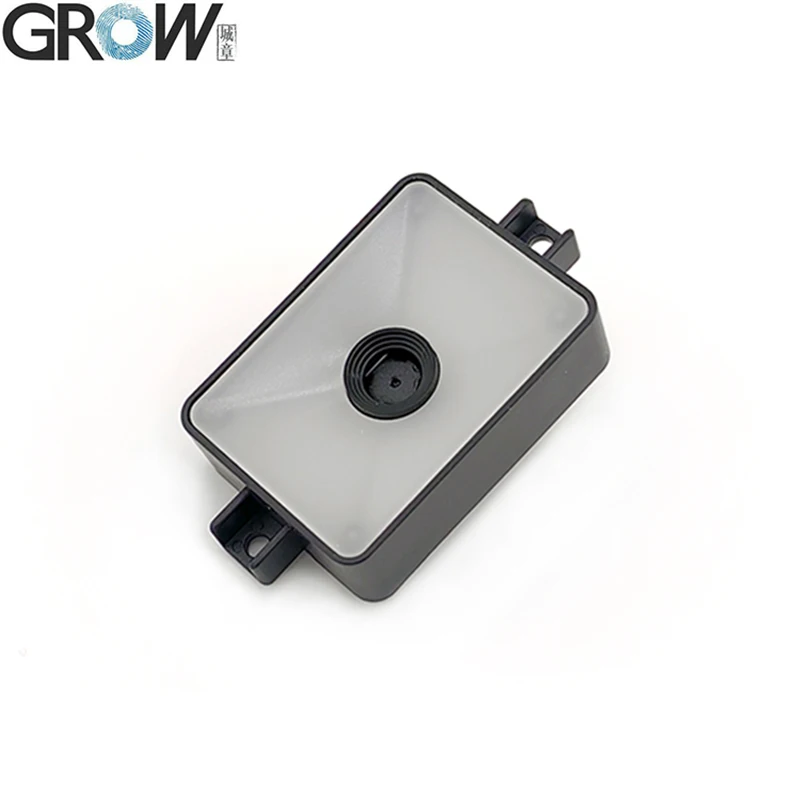

GROW GM78 Global Multi-code DC5V USB UART Interface 1D 2D Bar Code Qr Code Scanner Module Reader Support QR DM AZTEC PDF417

stars, based on 0reviews

~~$28.00~~$24.80 piece

Quantity Price

10+ $23.81

Product Tag:

Barcode Scanner

Description
Item specifics

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8. Superior reading performance utilizing advanced decoding algorithms

9. Global multi-code reading.

Scanning
Performance
Scan Mode
640*480 CMOS
Lighting
WhiteLED
Ambient light
Soft White LED

Read
Code
Type
2D
QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417

1D
EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
GS1 Databar ,Code 11,Industrial 25,
Standard 25,Plessey, Matrix 2 of 5
Accuracy of reading
≥4mil

Depth
of Field
EAN-13
50mm-200mm (13mil)

Code 39
40mm-90mm (5mil 10 bytes)
QR Code
25mm-200mm (20mil 16 bytes)
Data Marix
50mm-90mm (10mil 20 bytes)
PDF417
30mm-130mm (6.67mil 7 bytes)
Contrast
≥25%
Scanning angle
Intersection angle 360°,Elevation ± 55°
Deflection angle ± 55°
Viewing Angle
Horizontal:47°Vertical:36°
Mechanical/
Electrical Parameters

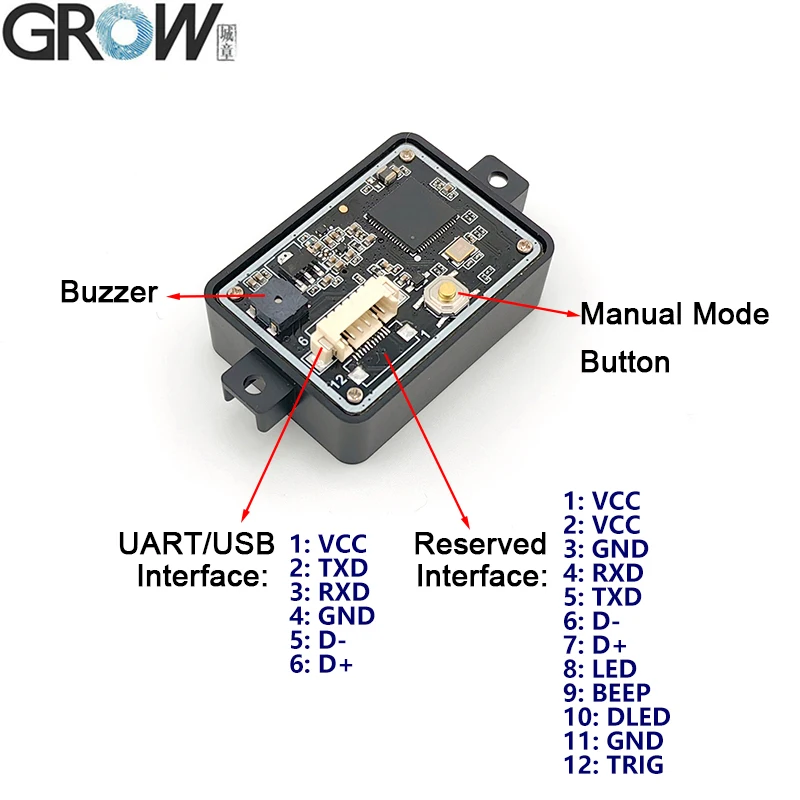

Interface
TTL-232 , USB (HID-KBW, Virtual serial port)

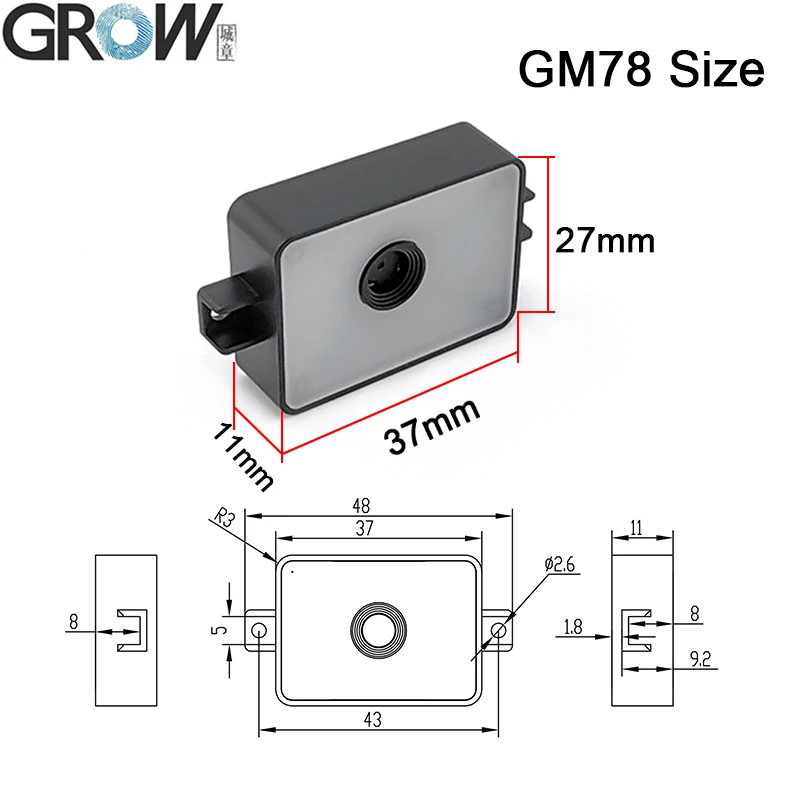

Dimension
48(W)*27.5(D)*14(H)mm
Operating Voltage
DC 5V
Operating Current
180mA
Standby Current
USB:50mA; TTL:10mA
Environmental Parameters
Operating
Temperature
-20℃~+50℃
Storage Temperature
-40℃~+70℃
Operating Humidity
5%~95% (Non-Condensing)
Environmental Light
0~100000LUX

·Provide User Manual

You can download the GM78 user manual from this website link:
https://www.dropbox.com/sh/buysgr2aeutuub3/AADsvupiGseFm-6IowMBWGCOa?dl=0

GM78 Operation Video on Youtube: https://youtu.be/aqNBHCH6HVQ

Brand Name:: grow

Model Number:: GM78

Interface:: USB and UART

Operating Voltage:: 5V

Operating Current:: 180mA

Resolution:: 0.10mm (4mil)

Scanning Performance	Scan Mode		640*480 CMOS
	Lighting		WhiteLED
	Ambient light		Soft White LED
	Read Code Type	2D	QR Code, Data Matrix, PDF417,Aztec,Micro QR,Micro PDF417
		1D	EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
			Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
			GS1 Databar ,Code 11,Industrial 25,
			Standard 25,Plessey, Matrix 2 of 5
	Accuracy of reading		≥4mil
	Depth of Field	EAN-13	50mm-200mm (13mil)
		Code 39	40mm-90mm (5mil 10 bytes)
		QR Code	25mm-200mm (20mil 16 bytes)
		Data Marix	50mm-90mm (10mil 20 bytes)
		PDF417	30mm-130mm (6.67mil 7 bytes)
	Contrast		≥25%
	Scanning angle		Intersection angle 360°,Elevation ± 55° Deflection angle ± 55°
	Viewing Angle		Horizontal:47°Vertical:36°
Mechanical/ Electrical Parameters	Interface		TTL-232 , USB (HID-KBW, Virtual serial port)
	Dimension		48(W)27.5(D)14(H)mm
	Operating Voltage		DC 5V
	Operating Current		180mA
	Standby Current		USB:50mA; TTL:10mA
Environmental Parameters	Operating Temperature		-20℃~+50℃
	Storage Temperature		-40℃~+70℃
	Operating Humidity		5%~95% (Non-Condensing)
	Environmental Light		0~100000LUX
