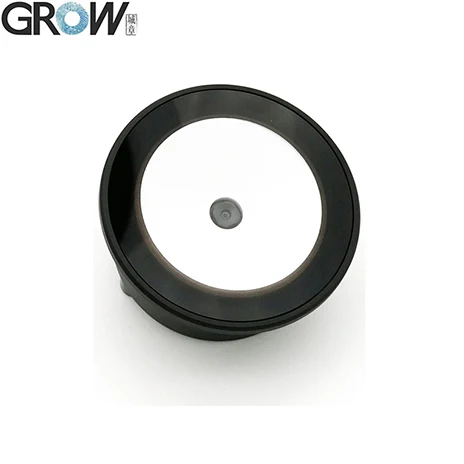

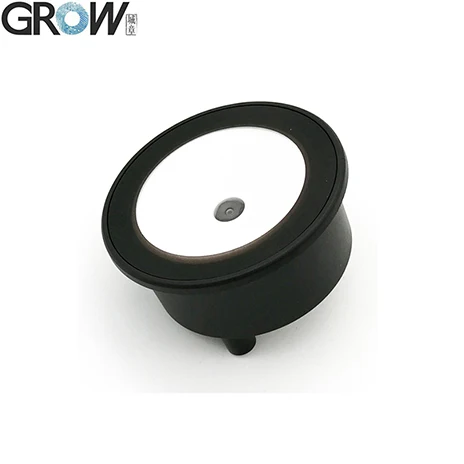

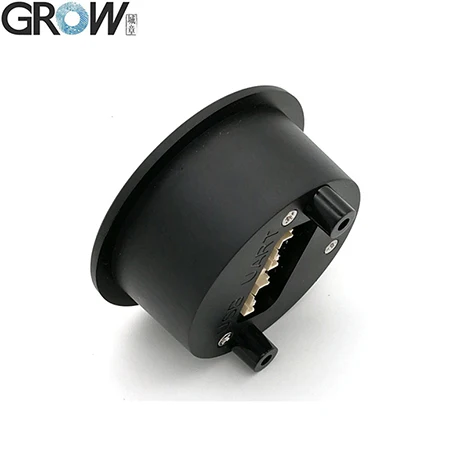

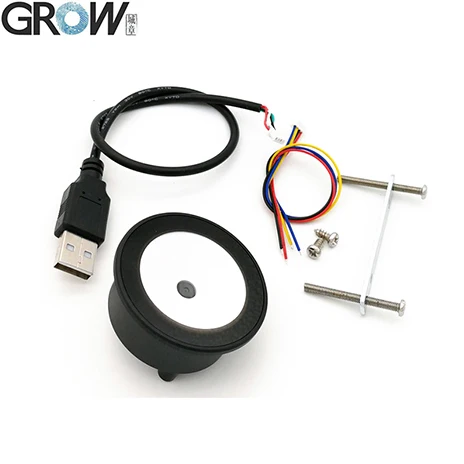

GROW GM73 Small Round Easy Installation USB UART 1D 2D QR Code Barcode Scanner Reader
Description
·Provide User Manual
1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.
2. High-efficiency recognization and high upload speed for improving your working efficiency.
3. With buzzer for reminding you that the scanning successfully or not.
4. Compatible with USB and UART interface.
5. Over 180 configurable options
6. Macro support replace a string in the bar code with another
7. Programmable preamble postamble and termination strings
8.Superior reading performance utilizing advanced decoding algorithms
Decoding Ability:
Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417
ELECTRICAL PARAMETERS:
SPECIFICATION | |
Model | GM73 |
Type | Barcode Scanner |
Decoding Ability | Codebar/ Code 11/ Code 39/Code 93/ UPC /EAN/Code 128/EAN128/Interleaved 2 of 5/ Matrix 2 of 5/ MSI Code/MSI Code/ Industrial 2 of 5/ GS1 Databar/QR code/ Data Matrix/PDF417 |

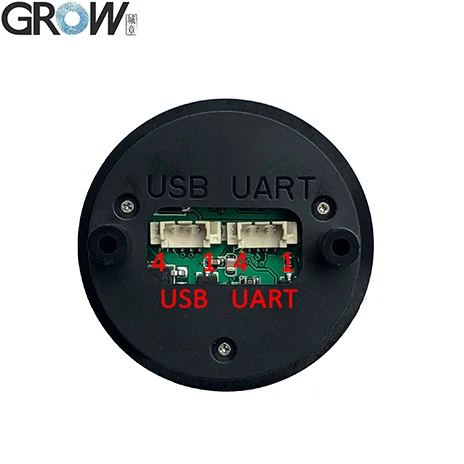

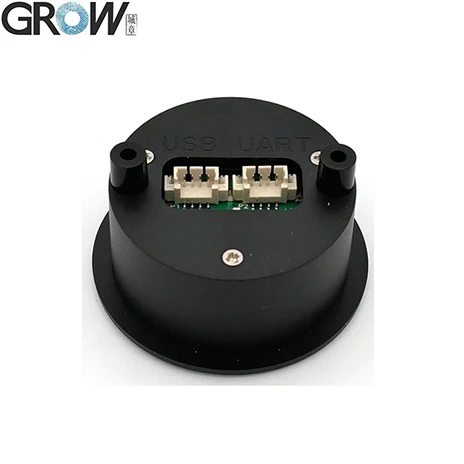

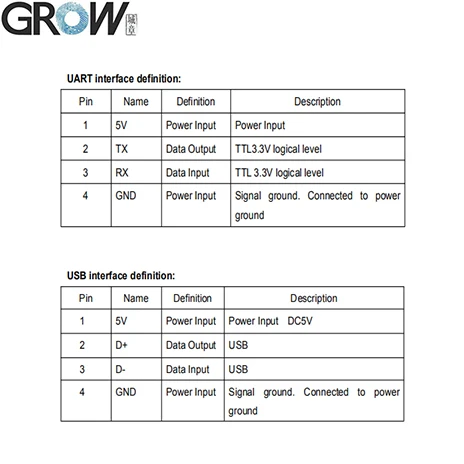

Interface | USB2.0 \ UART |
Resolution | 10mil |
Operating Voltage | 5V |
Operating Current | 90mA |
Weight | 15g |
Size | Diameter 46mm |
Light | White/Blue |
Scan Angle | 0-360°, Pitch:±45°or greater, Yaw:±45°or greater |
Scanning angle Inclination angle | 46°, Elevation angle 36° |
Reading Distance | 40 - 100mm |
Operating Temperature | -30 degrees to 70 degrees |
Storage Temperature | -40 degrees to 65 degrees |
Temperature Humidity | 5% to 95% Relative humidity, Non-condensing |
Light Levels | 0-85000LUX |
You can download the GM73 user manual from this website link:
GM73 Circuit diagram

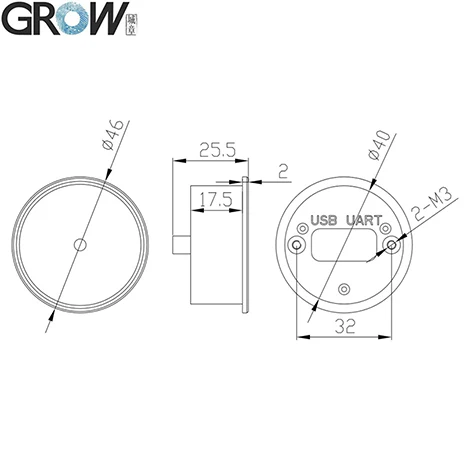

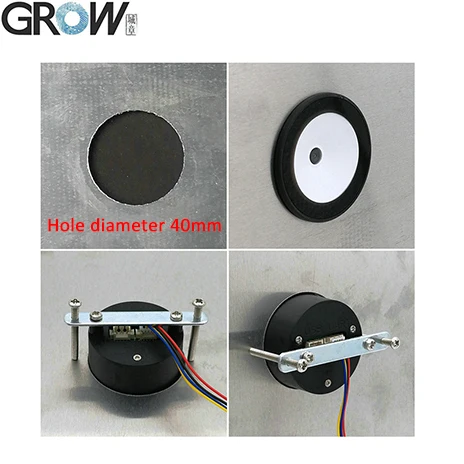

GM73 Installation Drawing
- Brand Name:
- grow
- Model Number:
- GM73
- Interface:
- USB2.0 and UART
- Operating Voltage:
- 5V
- Operating Current:
- 90mA
- Resolution:
- 6mil
- Reading Distance:
- 40-100mm
- Size:
- diameter 46mm
- Weight:
- 15g
