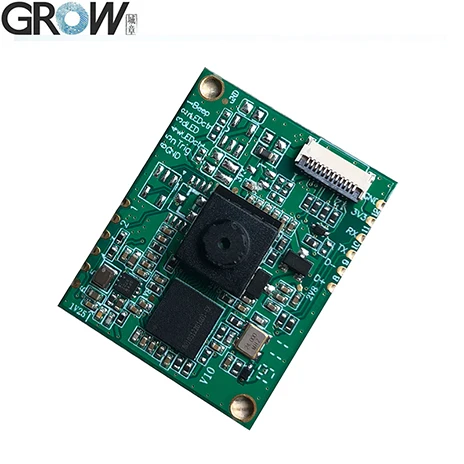

GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode

stars, based on ( 0 ) reviews
$23.00now$21.50 piece
Quantity Price
10+ $20.64
999 items available
OR

Specifications

Decoding  Ability:

   1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect.

   2D: PDF417,QR Code ,Data Matrix , Maxicode, Aztec

Scan Angle: Roll:0-360°, Pitch:±55°or greater, Yaw:±55°or greater

Scanning angle Inclination angle: 60°, Elevation angle 46°

Print Contrast 25% minimum reflective difference

Resolution: 6 mil

Reading Distance :30 - 150mm

Interfaces: USB2.0 \ UART

Operating Temperature:-20 degrees to 55 degrees

Storage Temperature:-40 degrees to 65 degrees

Temperature Humidity:5% to 95% Relative humidity, Non-condensing

Light Levels:0-10000LUX

ELECTRICAL PARAMETERS
Operating Voltage :3.3V
Operating Current :100mA
Weight: 6g
Size:  30*24*7mm



Files

·Provide User Manual

You can download the GM68 user manual from this website link:




Images

GM68-A-

GM68-A

GM68-D

GM68-C

       -1

      -1






Package Listing

GM68-D
Brand Name:
grow
Model Number:
GM68
Interface:
USB2.0 and UART
Operating Voltage:
3.3V
Operating Current:
100mA
Resolution:
6mil
Reading Distance:
30-150mm
Size:
30*24*7mm
Weight:
6g
