New DesignG12 Capacitive Password Fingerpirnt Cabinet Lock
·Fingerprint capacity: 100
·Power supply: 4*AA battery ·Stand-by mode current: less than 40 uA
·Password Number: 10 sets ·Storage Temperature: -30°C~65 °C ·Working condition: -20°C~55 °C ·Humidity: RH10-92%

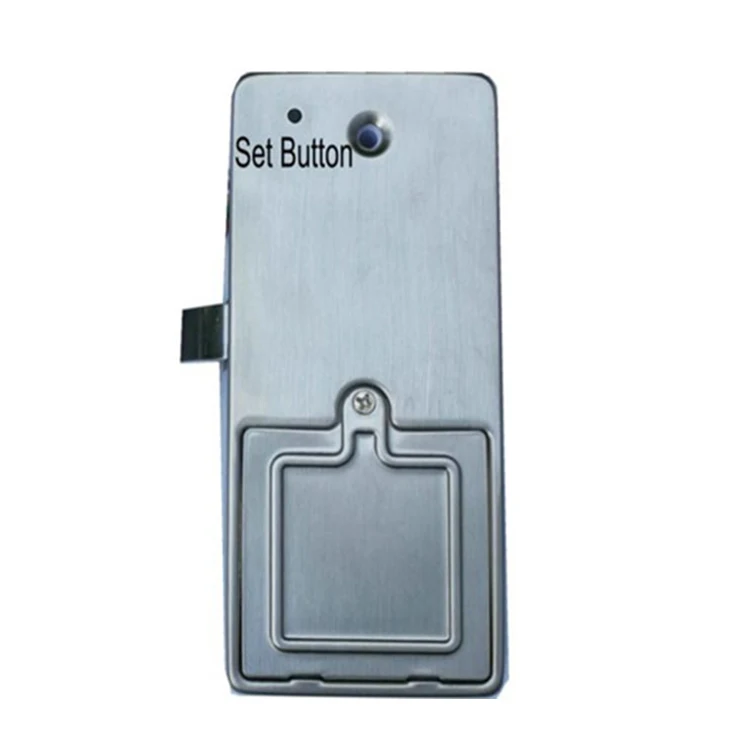

Press shortly the SET button, and hearing the music, the blue panel indicator lightened; then press finger on fingerprint recognition area for2 timesfor each fingerprint, fingerprint registered successful when hearing music.Every 2 times is recorded as one fingerprint.Fingerprint can be registered continuously, it can be registered 100 pieces fingerprints; When hear “DiDiDiDiDiDi”, it means the fingerprint library is full; Wait a few seconds to automatically exit the registration status.
After fingerprint passed, press【OK】new password【OK】new password【OK】, it can set 10 sets of passwords, the password length: 4-8 bits (support Mask Function).
4.Delete Password:After fingerprint passed, long press the【C】until hearing the music.
5.Factory Default:Press SET button until hearing the music and “Di---DiDiDi”, means fingerprints and passwords deleted successfully, and back to factory default. Any fingerprint can be used for the state of factory default, and this function disabled after fingerprint registered.
Emergency power: If the battery is low when open it, hear the “DiDiDi”, please replace the battery in time. When there is no electricity, plug the emergency power supply to DC5V charge pal.
You can check the operation video on Youtube: https://youtu.be/yhaMLJa5Jwo
